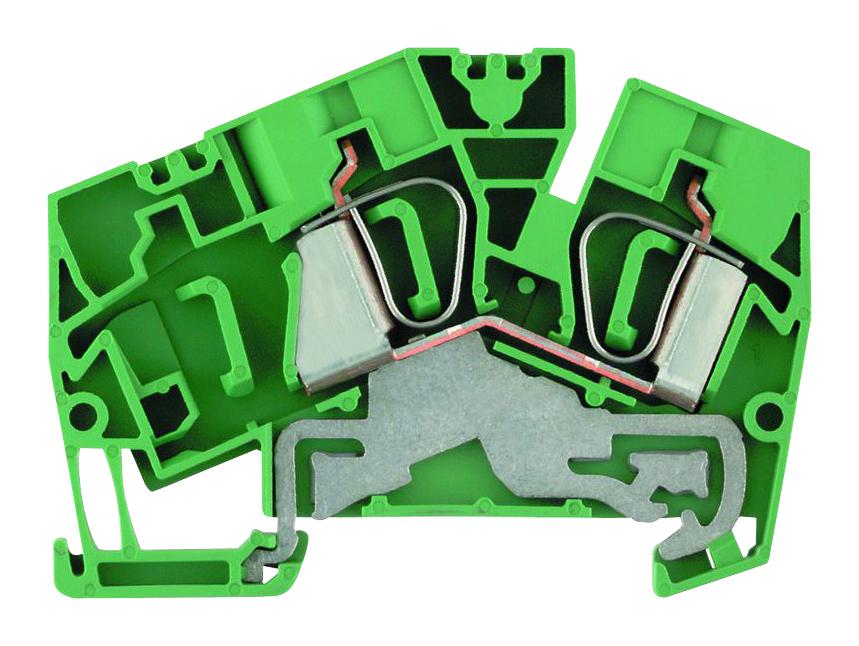

WEIDMULLER 1771370000 ZPE 6-2/2AN Terminal Block
The WEIDMULLER ZPE 6-2/2AN terminal block utilizes tension clamp technology, a versatile contact system designed for a wide range of conductor connection types. This innovative design provides flexibility and ease of use, making it a profitable alternative connection solution. It features a PE terminal, is colored green/yellow, and is suitable for applications requiring reliable and efficient conductor termination. The block is designed for snap-on mounting on TS 35 rails and is part of the Z-series.
WEIDMULLER 1771370000 ZPE 6-2/2AN Terminal Block Specifications:
- Width: 8.1 mm
- Height: 68 mm
- Depth: 49.19 mm
- Depth_including_DIN_rail: 50 mm
- Width_inches: 0.319 inch
- Height_inches: 2.677 inch
- Depth_inches: 1.937 inch
- Net_weight: 21.9 g
- Operating_temperature_range_min: -50 °C
- Operating_temperature_range_max: 120 °C
- Material: Wemid
- UL_94_flammability_rating: V-0
- Colour_code: Green/yellow
- Certificate_No_ATEX: KEMA97ATEX4677U
- Ex_label: II 2 G D
- Wire_cross_section_max_ATEX: 6 mm²
- Marking_EN_60079_7: Ex eb II C Gb
- Version: Tension-clamp connection, With PE connection, One end without connector
- Number_of_levels: 1
- Levels_cross_connected_internally: No
- Rail: TS 35
- End_cover_plate_required: Yes
- No_of_clamping_points_per_level: 2
- PE_connection: Yes
- PEN_function: No
- Open_sides: right
- Number_of_similar_terminals: 1
- Type_of_mounting: Snap-on
- Blade_size: 0.6 x 3.5 mm
- Clampingrange_min: 0.22 mm²
- Gauge_to_IEC_60947_1: A5
- Strippinglength: 12 mm
- Wire_connection_cross_section_AWG_max: AWG 8
- Wire_connection_cross_section_finely_stranded_max: 10 mm²
- Wire_connection_cross_section_finely_stranded_with_ferrules_DIN_46228_1_min: 0.5 mm²
- Wire_connection_cross_section_finely_stranded_with_ferrules_DIN_46228_4_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_max: 10 mm²
- Clampingrange_max: 10 mm²
- Connection_direction: Inclined/angled
- Number_of_connections: 2
- Type_of_connection: Tension-clampconnection
- Wire_connection_cross_section_AWG_min: AWG 22
- Wire_connection_cross_section_finely_stranded_with_ferrules_DIN_46228_1_max: 6 mm²
- Wire_connection_cross_section_finely_stranded_with_ferrules_DIN_46228_4_max: 6 mm²
- Wire_connection_cross_section_finely_stranded_min: 0.5 mm²
- Wire_connection_cross_section_solid_core_min: 0.5 mm²
- Rated_short_time_current: 720 A (6 mm²)
- Rated_cross_section: 6 mm²
- Standards: IEC 60947-7-2
- Rated_impulse_withstand_voltage_to_adjacent_terminal: 8 kV
- Rated_voltage_to_adjoining_terminal: 800 V
- Volume_resistance_according_to_IEC_60947_7_x: 0.78 mΩ
- Pollution_severity: 3
- Certificate_No_UR: E60693
- Conductor_size_Factorywiring_min_UR: 22 AWG
- Conductor_size_Factorywiring_max_UR: 8 AWG
- Conductor_size_Field_wiring_min_UR: 22 AWG
- Conductor_size_Field_wiring_max_UR: 8 AWG
- ETIM_3.0: EC000901
- ETIM_5.0: EC000491
- UNSPSC: 30-21-18-11
- eClass_6.2: 27-14-03-05
- eClass_8.1: 27-14-11-41
- eClass_9.1: 27-14-11-41
- ETIM_4.0: EC000491
- ETIM_6.0: EC000901
- eClass_5.1: 27-14-03-05
- eClass_7.1: 27-14-03-05
- eClass_9.0: 27-14-11-41
