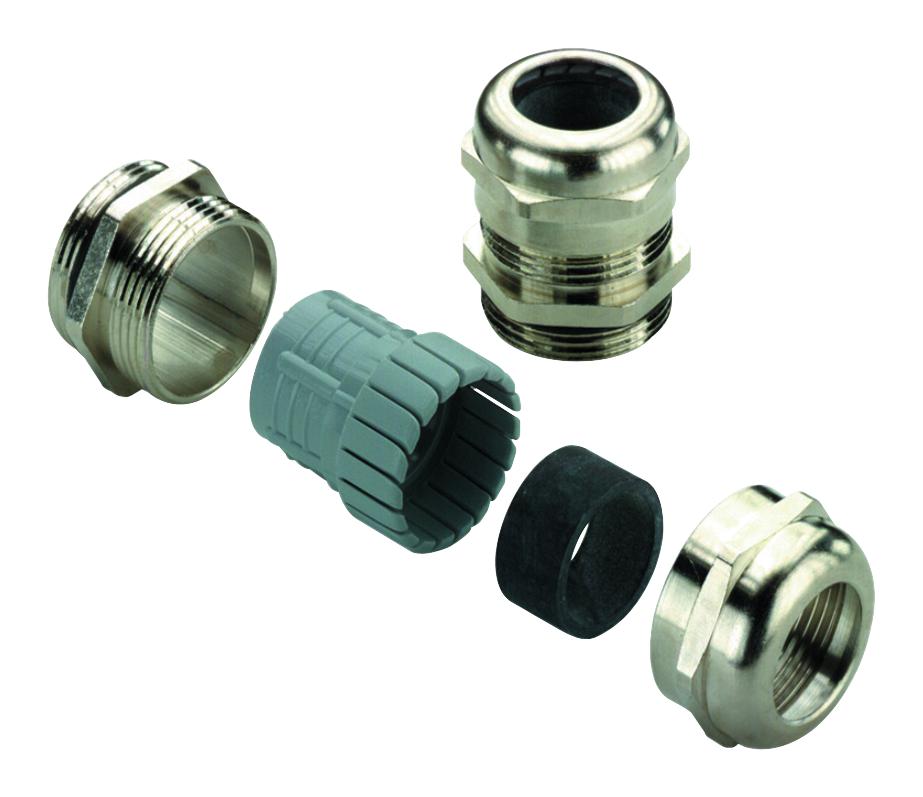

WEIDMULLER 1772240000 VG M32 Cable Gland
The Weidmuller VG M32 - MS 68 cable gland is a high-quality solution for securing and protecting cables in demanding industrial environments. Constructed from nickel-plated brass, this cable gland provides excellent corrosion resistance and durability. It is designed to meet the stringent requirements of IP54, IP66, IP67, IP68 (up to 5 bar for 30 minutes), and IP69K protection classes, ensuring reliable performance in harsh conditions. The gland features a M32 external thread and a 9mm thread length, accommodating cables with an outer diameter between 13mm and 18mm. Its robust design and secure sealing capabilities make it ideal for applications in machinery, control cabinets, and outdoor installations.
WEIDMULLER 1772240000 VG M32 Cable Gland Specifications:
- Type: VG M32 - MS 68
- Order No.: 1772240000
- Version: VG MS (standard brass cable gland), Cable glands, M 32, 9 mm, OD min. 13 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
- GTIN(EAN): 4032248129898
- Qty.: 10 pc(s).
- Length: 42 mm
- Length(inches): 1.654 inch
- Net weight: 87.44 g
- REACH SVHC: Lead 7439-92-1
- Approval conditions: DNV,UL,cULus
- Certificate no. cable gland (UL): E-199260
- Certificate no. cable gland (GERMLLOYD): E-14047
- Certificate no. cable gland (cULus): E-199260
- Material: Brass, nickel-plated
- External thread: M 32
- Length of thread: 9 mm
- AF size: 34 mm
- Protection degree with GWDR: IP54, IP66, IP67, IP68 - 5 bar(30 min.),IP69K
- Operating temperature range,max.: 100 °C
- Outer cable diameter,max.: 18 mm
- Clampinsert: Polyamide
- Seal insert: CR
- Tightening torque: 6 Nm
- Torque for capnut,max.: 18 Nm
- Torque for connecting adapter, max.: 7 Nm
- Pitch of thread: 1.5 mm
- AF size 1: 30 mm
- Protection degree: IP54, IP66, IP67, IP68 - 5 bar(30 min.),IP69K
- Operating temperature range, min.: -40 °C
- Outer cable diameter,min.: 13 mm
- Halogen: No
- O-Ring: NBR
- Sealing: NBR
- Torque for capnut,min.: 16 Nm
- Torque for connectingadapter,min.: 5 Nm
- ETIM 6.0: EC000441
- eClass 9.0: 27-14-44-32
- eClass 10.0: 27-14-44-32
- ETIM 7.0: EC000441
- eClass 9.1: 27-14-44-32
- UNSPSC: 30-21-18-01
