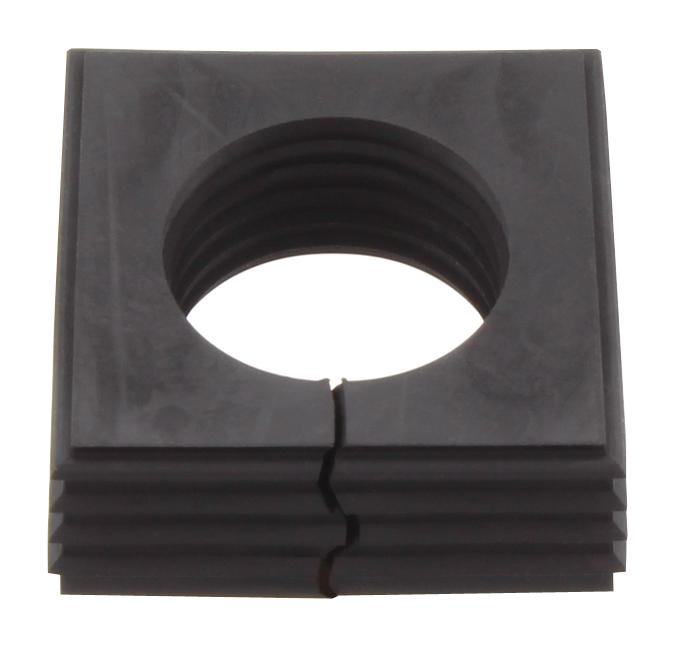

WEIDMULLER 2583690000 Cable Grommet
This conical-shaped grommet facilitates easy installation by sealing gaps and providing strain relief, compliant with DIN EN 62444 standards. It is designed for simple pressing into place from inside the frame inlay. The slotted, wave-cut design accommodates preassembled cables and, when combined with the frame inlay, achieves an IP66 protective rating. Made from black halogen-free, silicone-free, UV-stabilized thermoplastic elastomer (TPE), it offers durability and environmental resistance. The grommet features a large 1-hole clamp suitable for cable diameters of 26mm to 27mm, with a flammability rating of UL94 HB and a static temperature range from –40°C to +120°C.
WEIDMULLER 2583690000 Cable Grommet Specifications:
- Material: Halogen-free, silicone-free, UV stabilized TPE
- Design: Conical, wave-cut, slotted
- Protection Rating: IP66 according to DIN EN 60529
- Clamp Range: Suitable for cable diameters 26mm to 27mm
- Flammability: UL94 HB
- Temperature Range: -40°C to +120°C
- Color: Black RAL 9005
- Durability: Resistant to environmental factors and chemicals
- Compliance: DIN EN 62444 for strain relief and sealing
- Installation: Press-fit from inside the frame inlay
- Sealing: Uses large single-hole clamp for effective sealing
- Application: Suitable for pre-assembled cables in enclosures and control cabinets
Buy the Weidmuller Series Cable Grommet: 2583690000
Enhance your cable management with our durable, IP66 rated cable grommet designed for sealing gaps and providing strain relief. Made from UV-stabilized, halogen-free TPE, it easily installs by pressing into place from inside the frame inlay. Suitable for cables with diameters between 26mm and 27mm, its wave-cut, slotted design ensures a tight seal even on rough surfaces. Ideal for industrial, automation, and control panel applications, this grommet withstands harsh environments from -40°C to +120°C, maintaining safety and environmental resistance.
Order your Weidmuller Series Cable Grommet 2583690000 today and ensure reliable sealing and strain relief for your control cabinets and enclosures.
