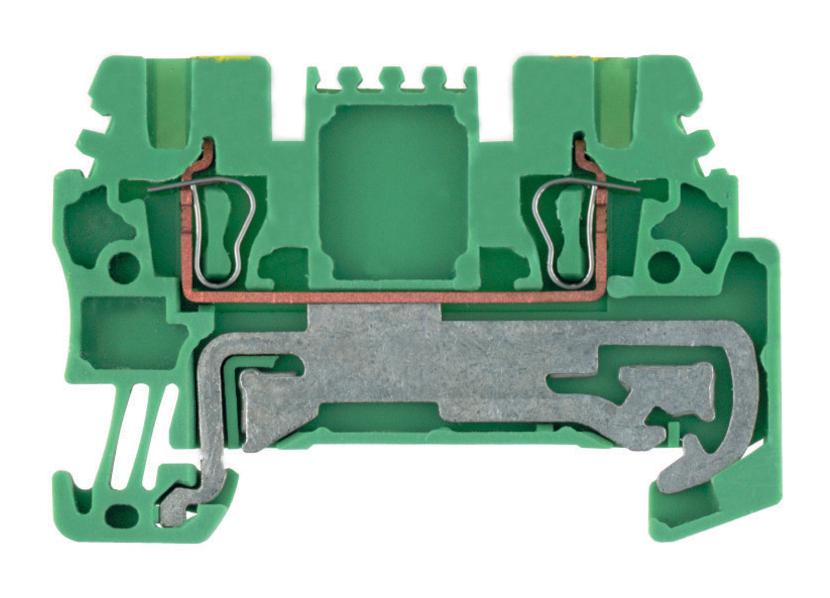

WEIDMULLER 1775510000 ZPE 1.5 Tension Clamp Terminal
The Weidmüller ZPE 1.5 terminal block utilizes tension-clamp connection technology, offering a universal contact system adaptable to diverse conductor connection types. This design provides flexibility and a profitable alternative connection method. It's suitable for applications requiring a PE connection and is designed for direct mounting on TS 35 rails. The terminal block is explosion-tested and conforms to various international standards, making it suitable for demanding industrial environments.
WEIDMULLER 1775510000 ZPE 1.5 Tension Clamp Terminal Specifications:
- Type: ZPE 1.5
- Order No.: 1775510000
- Version: Tension-clamp connection, With PE connection, One end without connector
- GTIN(EAN): 4032248181452
- Quantity: 50 pc(s).
- Width: 3.5 mm
- Height: 54.5 mm
- Depth: 36.5 mm
- Depth including DIN rail: 37 mm
- Width(inches): 0.138 inch
- Height(inches): 2.146 inch
- Depth(inches): 1.437 inch
- Net weight: 8.06 g
- Operating temperature range: For operating temperature see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature, min.: -25 °C
- Continuous operating temp., min.: -50 °C
- Storage temperature, max.: 55 °C
- Continuous operating temp., max.: 120 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: Green/yellow
- Certificate No.(ATEX): KEMA01ATEX2106U
- Wire cross section max.(ATEX): 1.5 mm²
- Ex 2014/34/EU label: II 2 G D
- Certificate No.(IECEX): IECEXULD15.0008U
- Wire cross section max.(IECEX): 1.5 mm²
- Marking EN 60079-7: Ex eb II C Gb
- Number of levels: 1
- Levels cross-connected internally: No
- Rail: TS 35
- End cover plate required: Yes
- Number of clamping points per level: 2
- PE connection: Yes
- PEN function: No
- Explosion-tested version: Yes
- Number of similar terminals: 1
- Type of mounting: Snap-on
- Installation advice: Direct mounting
- Open sides: right
- Certificate No.(CSA): 200039-1152892
- Wire cross section min. (CSA): 26 AWG
- Wire cross section max.(CSA): 14 AWG
- Rated short-time current: 180 A (1.5 mm²)
- Rated cross-section: 1.5 mm²
- Standards: IEC 60947-7-2
- Power loss in accordance with IEC 60947-7-x: 0.56 W
- Pollution severity: 3
- Rated voltage to adjoining terminal: 500 V
- Volume resistance according to IEC 60947-7-x: 1.83 mΩ
- Rated impulse withstand voltage to adjacent terminal: 6 kV
- ETIM 6.0: EC000901
- eClass 9.0: 27-14-11-41
- eClass 10.0: 27-14-11-41
- ETIM 7.0: EC000901
- eClass 9.1: 27-14-11-41
- UNSPSC: 30-21-18-11
