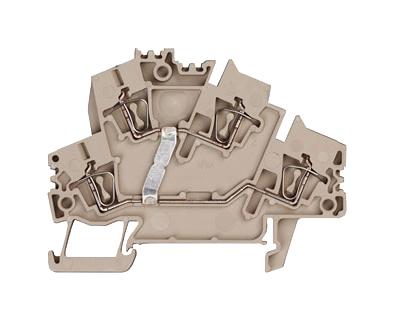

WEIDMULLER 1791030000 Dual-Tier Terminal Block
The Z-series ZDK 2.5-2V is a dual-tier feed-through terminal with tension-clamp technology, supporting 2.5 mm² conductor cross-sections. It features a universal contact system compatible with various cable types, and is rated for 800 V and 24 A, making it suitable for electrical installations requiring reliable and flexible connections. Its robust construction with dark beige Wemid material offers excellent thermal and chemical resistance. Designed for DIN rail mounting, this explosion-tested terminal ensures safety and durability in control panels and industrial automation environments, complying with IECEx, ATEX, UL, and CSA standards.
WEIDMULLER 1791030000 Dual-Tier Terminal Block Specifications:
- Width: 5.1mm (0.201 inch)
- Height: 72.5mm (2.854 inch)
- Depth: 54.5mm (2.146 inch)
- Depth including DIN rail: 55.5mm
- Net weight: 10.18 g
- Operating temperature range: -25°C to 55°C, continuous temp. min. 60°C, max. 130°C
- Material: Wemid, colour: dark beige, UL 94 V-0 flammability rating
- Rated voltage: 800 V, Rated current: 24 A
- Wire cross section max.: 4 mm², min.: 0.05 mm²
- Blade size: 0.6 x 3.5 mm, stripping length: 10 mm
- Connection type: Tension-clamp, snap-on mounting, vertical cross-connection
- Number of clamping points per level: 2, levels: 2, cross-connected internally
- Conductor compatibility: AWG 30 to 12, wire-end ferrules DIN 46228/1 and 46228/4
- Certifications: IECEx, ATEX, UL, CSA, explosion-tested version
Buy the Weidmueller Series ZDK 2.5-2V: Dual-tier Terminal Block
Order the Weidmueller ZDK 2.5-2V terminal block online today for secure, flexible, and explosion-proof wiring solutions. Its tension-clamp technology supports 2.5 mm² conductors, rated for 800 V and 24 A, ensuring optimal performance in control panels and automation environments. Designed for DIN rail mounting, this robust terminal provides high thermal and chemical resistance, complying with IECEx, ATEX, UL, and CSA standards. Perfect for industrial applications, it guarantees safety, durability, and easy installation, making it the ideal choice for your electrical wiring needs.
Get Weidmueller ZDK 2.5-2V today—built for reliable connections in industrial control and automation systems.
