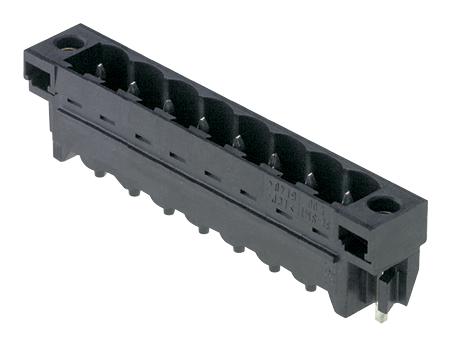

WEIDMULLER 1838490000 Industrial PCB Header
The Weidmueller OMNIMATE Signal series BL/SL 5.08 HC/07/180LF 3.2SN BK BX is a high-temperature-resistant PCB male header designed for automatic placement and reflow soldering. Featuring a 5.08 mm pitch, seven poles, and 180° outgoing elbow, it offers reliable THT/THR connections with a solder pin length of 3.2 mm. The black insulating material is made of LCP GF, with tinned copper contacts. Certified for IEC, UL, and CSA standards, it supports robust electrical performance with rated voltages up to 400 V and currents up to 27.5 A, ensuring safety, durability, and easy coding for industrial applications.
WEIDMULLER 1838490000 Industrial PCB Header Specifications:
- Pitch in mm: 5.08 mm
- Number of poles: 7
- Solder pin length: 3.2 mm
- Solder pin diameter: 1.2 mm, Octagonal
- Eyelet hole diameter: 15 mm
- Material: LCP GF, Black
- Contact material: Copper alloy, Tinned
- Operating temperature range: -60°C to 100°C
- Rated voltage IEC: 400 V, UL: 300 V, CSA: 300 V
- Rated current IEC: 27.5A, UL: 18.5A, CSA: 18.5A
- Flammability rating: UL 94 V-0
- Number of solder pins per pole: 1
- Number of rows: 1
- Can be coded: Yes
- Packaging: Box
- Certifications: IEC, UL, CSA
Buy the Weidmueller 1838490000 – Reliable PCB Header for Industrial Applications
Purchase the Weidmueller Series 1838490000 PCB male header online today and benefit from high-quality, durable connections designed for industrial automation. Featuring a 5.08 mm pitch, 7 poles, and robust tinned copper contacts, this component ensures reliable electrical performance with rated voltages up to 400 V and currents of 27.5 A. Its high-temperature resistance and certified safety standards make it ideal for reflow and wave soldering, simplifying assembly, and enhancing project longevity. Order now for quick delivery and superior connectivity solutions.
Order your Weidmueller Series 1838490000 PCB male header today and ensure dependable, high-temperature circuit connections for industrial projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1838490000?
You can click on the BUY or RFQ button to purchase 1838490000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1838490000?
You can download the 1838490000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1838490000?
WEIDMULLER
