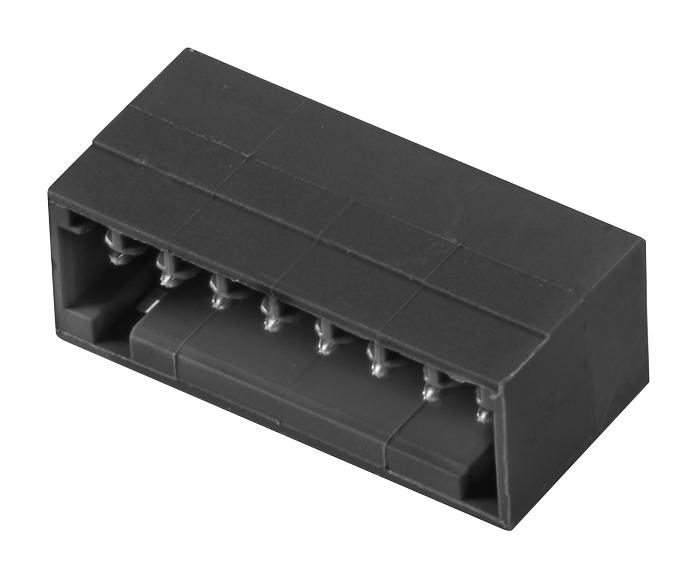

WEIDMULLER 2439780000 PCB Male Header
The Weidmueller OMNIMATE Signal series BL/SL 2.50 male header is designed for wave soldering with a 2.50 mm pitch. It features a 90° plugging direction relative to the PCB, a closed housing variant, and is packaged in a cardboard box. This PCB plug-in connector supports THT solder connection, has five poles, and meets IEC and UL standards for voltage and current ratings. Made from durable, tinned copper alloy with a black PA 66 insulation material, it ensures reliable electrical connectivity in industrial electronics. It is ideal for automated assembly and offers high mechanical stability and long-term performance.
WEIDMULLER 2439780000 PCB Male Header Specifications:
- Pitch: 2.50 mm or 0.984 inch
- Number of poles: 5
- Solder pin length: 3.2 mm with +0.17-0.1 mm tolerance
- Pin dimensions: 0.8x0.8 mm
- Hole diameter: 1.3 mm
- Material: Tinned copper alloy
- Insulation: PA 66, black, RAL 9011, UL 94 V0
- Width: 14.4 mm (0.567 inch)
- Height: 11.3 mm (0.445 inch), lowest version 8.1 mm
- Depth: 10.1 mm (0.398 inch)
- Rated voltage: IEC 320V / UL 150V
- Rated current: 6A IEC / 5A UL
- Operating temperature: -40°C to +105°C
- Touch-safe protection, 25 plug cycles
- Packaging: Box
- Approvals: IEC, UL, cURus, IP rating: IP00
Buy the Weidmueller 2439780000 – Reliable PCB Male Header for Industrial Applications
Purchase the Weidmueller Series 2439780000 PCB Male Header online today for your industrial electronic needs. This 5-pole, wave solderable connector features 2.50 mm pitch, durable tinned copper contact surfaces, and complies with IEC and UL standards for safety and performance. Designed for reliable THT soldering, it offers excellent mechanical stability and long-lasting electrical connectivity, making it ideal for automated manufacturing processes. Enhance your project’s reliability by choosing this high-quality, cost-effective terminal connector available now with fast online ordering and worldwide shipping.
Order your Weidmueller Series 2439780000 PCB Male Header today and ensure dependable electrical connections for your industrial projects.
