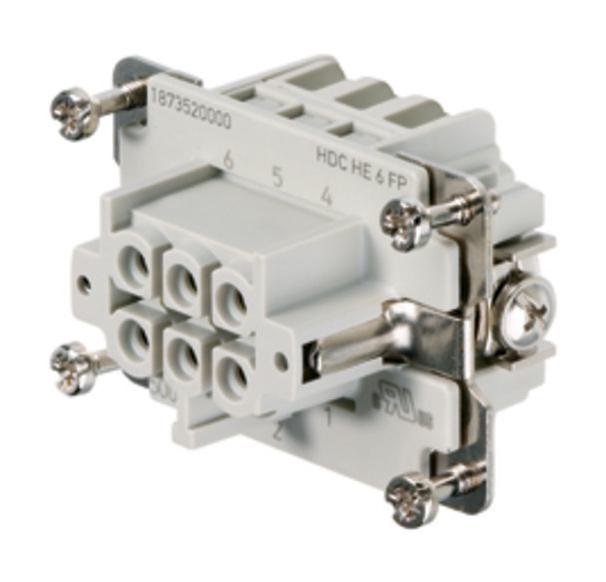

WEIDMULLER 1873520000 push-in connection module
The Weidmueller HDC HE 6 FP is a 6-pole push-in connection module designed for reliable wiring in industrial applications. Featuring a compact size of 51mm in length, 33.8mm in height, and 34mm in width, it is made from durable, UL-listed PC glass-fiber reinforced insulating material and copper alloy contacts with a silver passivated surface finish. The module supports a rated current of 24A, voltage of 600V AC/DC according to UL/CSA, and features high plug cycles of 2500 for lasting performance. Its robust connection system simplifies wiring with push-in technology, ensuring fast and secure connections suitable for harsh environments with a pollution severity rating of 3. It’s ideal for use in control panels, industrial automation, and connection interfaces demanding high reliability and ease of installation.
WEIDMULLER 1873520000 push-in connection module Specifications:
- Number of poles: 6
- Rated current: 24A
- Rated voltage: 600V AC/DC (UL/CSA)
- Dimensions: Width 34mm, Height 33.8mm, Depth 51mm
- Material: PC glass-fiber reinforced, Copper alloy
- Surface finish: Silver passivated
- Temperature range: -40°C to 125°C
- Plugging cycles: 2500
- Connection type: PUSH IN, screw connection for PE
- Wire cross-section: Finely stranded 0.5 mm² to 2.5 mm², solid max 1.5 mm²
- Tightening torque: Max 1.5 Nm for PE connection
- Certifications: UL Listed, IEC approvals
- Pollution severity: 3
Buy the Weidmueller Series HDC 6 FP: Push-In Connector Module: 1873520000
Order the Weidmueller HDC HE 6 FP push-in connection module online today for easy, tool-free wiring in industrial control systems. Its compact design measures 51mm long, with a width of 34mm and a height of 33.8mm, crafted from durable, UL-listed PC material and copper alloy contacts with a silver passivated finish. Rated for 24A and 600V, it supports up to 2500 plug cycles, ensuring high performance even in harsh environments. Ideal for industrial automation, control panels, and connection interfaces, it ensures fast, secure, and maintenance-free wiring, saving installation time and increasing reliability.
Get Weidmueller HDC HE 6 FP today—built for reliable industrial wiring and long-lasting durability.
Frequently Asked Questions
Where can I buy WEIDMULLER 1873520000?
You can click on the BUY or RFQ button to purchase 1873520000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1873520000?
You can download the 1873520000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1873520000?
WEIDMULLER
