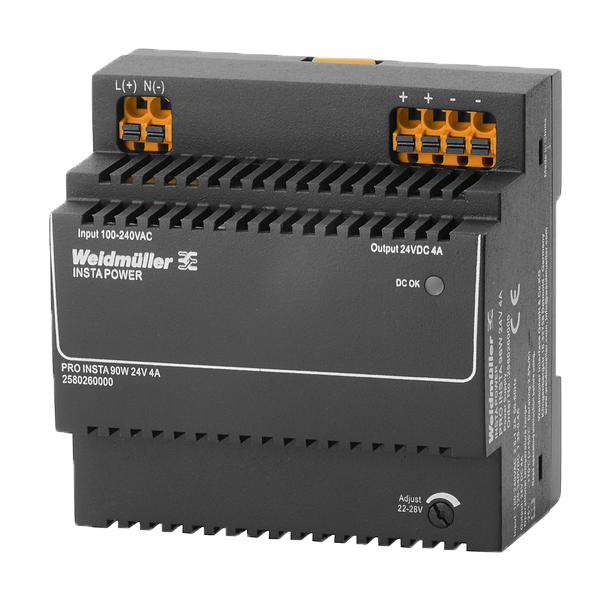

WEIDMULLER 2580260000 Power Supply
The PRO INSTA 96W 24V 4A power supply is a compact, single-phase switching power unit designed for industrial automation, signal, and telecommunications systems. It features a wide input voltage range of 85 to 264 V AC, an adjustable output voltage from 22 to 28 V DC, and good efficiency of 87%. The unit operates in temperatures from -25°C to +70°C, with a robust plastic housing, and provides a continuous output current of 4A. Suitable for environments requiring reliable, high-quality power with minimal ripple and spikes, it includes protective features like reverse voltage protection and various EMC standards compliance.
WEIDMULLER 2580260000 Power Supply Specifications:
- Dimensions: Width 90mm, Height 90mm, Depth 60mm
- Net weight: 3529 g
- Input voltage range: 85-264 V AC or 95-370 V DC
- AC current consumption: 1.24 A at 230 V AC
- DC current consumption: 0.4 A at 370 V DC
- Output voltage: adjustable 22-28 V DC, nominal 24 V, ±1%
- Output current: continuous 4A at 55°C, 2.5A at 70°C
- Ripple: <50 mVss at full load
- Operating temperature: -25°C to +70°C
- Storage temperature: -40°C to +85°C
- Efficiency: 87%
- Protection: Reverse voltage, EMC compliance (EN 61000 series, EN 55032), IP20 protection class
- Mounting: Horizontal DIN rail, TS 35, with recommended clearance for airflow
- Insulation voltage: input/earth 3.5 kV, output/earth 0.5 kV
- Inrush current: Max 40 A, fuse: 2 A or 6 A circuit breaker
Buy the Weidmueller Series PRO INSTA 96W 24V 4A
Purchase the Weidmueller Series PRO INSTA 96W 24V 4A power supply online today and equip your automation projects with dependable, high-quality power. This unit offers an adjustable output from 22 to 28 V DC, with a robust design suitable for demanding environments from -25°C to +70°C. Its high efficiency of 87%, low ripple, and comprehensive protection features ensure stable, safe operation. Ideal for telecommunications, signal systems, and industrial automation, this power supply guarantees optimal performance, space-saving installation, and long-term reliability for your manufacturing or control system needs.
Order your Weidmueller Series PRO INSTA 96W 24V 4A power supply today and ensure reliable, efficient power for your industrial automation systems.
Frequently Asked Questions
Where can I buy WEIDMULLER 2580260000?
You can click on the BUY or RFQ button to purchase 2580260000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2580260000?
You can download the 2580260000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2580260000?
WEIDMULLER
