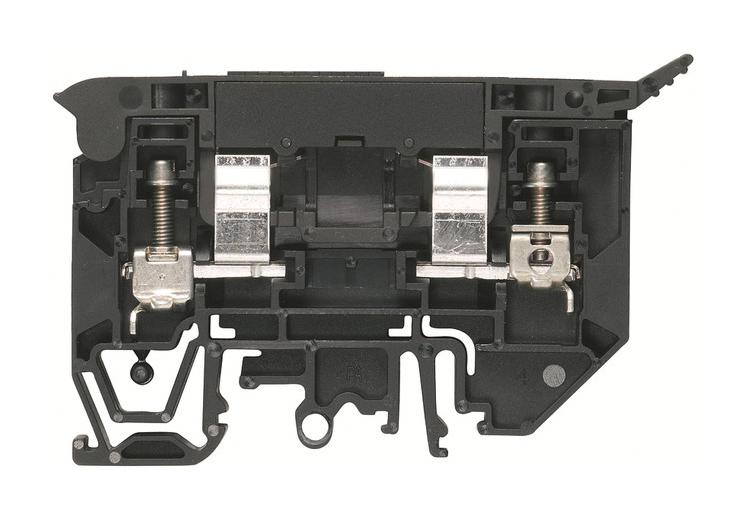

WEIDMULLER 1880390000 Fuse Terminal Block

WEIDMULLER 1880390000 Fuse Terminal Block Specifications:

• Type: WSI 4/2/LD 140-250V AC/DC
• Order No.: 1880390000
• Version: Screw connection, Fuse isolator, with LED, One end without connector
• GTIN(EAN): 4032248544660
• Quantity: 25 pc(s).
• Width: 9.1 mm
• Height: 81.6 mm
• Depth: 53.5 mm
• Net weight: 23.08 g
• Width(inches): 0.358 inch
• Height(inches): 3.213 inch
• Depth(inches): 2.106 inch
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp., max.: 120 °C
• Storage temperature,min.: -25 °C
• Continuous operating temp.,min.: -50 °C
• Material: Wemid
• UL 94 flammability rating: V-0
• Colour: black
• Number of potentials: 1
• Number of clamping points per level: 2
• Levels cross-connected internally: No
• Rail: TS 35, TS 32
• PE function: No
• End cover plate required: Yes
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Wire connection cross section, finely stranded, two clampable wires, min.: 0.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.: 0.5 mm²
• Wire cross-section, finely stranded, two clampable wires, max.: 1.5 mm²
• Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.: 1.5 mm²
• Number of similar terminals: 1
• Type of mounting: Snap-on
• Open sides: right
• Certificate No.(CSA): 200039-1575489
• Wire cross section min. (CSA): 30 AWG
• Wire cross section max.(CSA): 10 AWG
• Blade size: 0.6 x 3.5 mm
• Clamping range, min.: 0.5 mm²
• Connection cross-section, stranded, max.: 6 mm²
• Connection direction: on side
• Number of connections: 2
• Tightening torque, max.: 0.8 Nm
• Torque level with DMS electric screwdriver: 2
• Wire connection cross section AWG, max.: AWG 10
• Wire connection cross section, finely stranded, max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 6 mm²
• Clamping range, max.: 6 mm²
• Clampingscrew: M 3
• Connection cross-section, stranded, min.: 1.5 mm²
• Gauge to IEC 60947-1: A3
• Stripping length: 10 mm
• Tightening torque, min.: 0.5 Nm
• Type of connection: Screw connection
• Wire connection cross section AWG, min.: AWG 22
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 4 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• TS 35 offset: 25 mm
• Operating voltage for display, max.: 500 V
• Type of voltage for indicator: AC/DC
• Cartridge fuse: 6.3 x 32 mm (1/4 x 1 1/4")
• Fuse holder(cartridge holder): Pivoting
• Power loss for overload and short-circuit protection for a composite arrangement: 1.6 W at 1.0 A @ 41°C
• Power loss for short-circuit protection only for an individual arrangement: 4.0 W at 10 A @ 55°C
• Display: Red LED
• Operating voltage, max.: 250 V
• Power loss for short-circuit protection only for a composite arrangement: 2.5 W at 2.5 A @ 68°C
• Rated cross-section: 4 mm²
• Rated voltage to adjoining terminal: 500 V
• Current at maximum wires: 6.3 A
• Volume resistance according to IEC 60947-7-x: 1 mΩ
• Rated impulse withstand voltage: 6 V
• Rated voltage: 250 V
• Rated current: 6.3 A
• Standards: IEC 60947-7-3
• Power loss in accordance with IEC 60947-7-x: 1.02 W
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min. (cURus): 30 AWG
• Conductor size Field wiring min. (cURus): 30 AWG
• Conductor size Factory wiring max. (cURus): 10 AWG
• Conductor size Field wiring max. (cURus): 10 AWG
