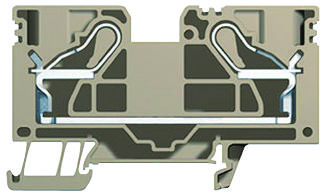

WEIDMULLER 1896400000 Power Distribution Terminal
The Weidmueller PDU 16 D-32758 is a high-quality feed-through terminal featuring PUSH IN technology, capable of handling 16 mm² conductor cross-section with an operating voltage of 800 V and a current capacity of 76 A. Its robust construction ensures compliance with safety standards such as UL 94 V-0 flammability rating. Designed for easy snap-on mounting on TS 35 rails, it provides reliable connections for industrial power distribution. The dark beige color and compact dimensions make it suitable for diverse control panel applications, offering durability and efficient wiring solutions.
WEIDMULLER 1896400000 Power Distribution Terminal Specifications:
- Width: 12.1mm (0.476 inch)
- Height: 80.5mm (3.169 inch)
- Depth: 47.5mm (1.87 inch)
- Depth including DIN rail: 48mm
- Material: Wemid, Dark Beige, UL 94 V-0 flammability rating
- Operating temperature: -50°C to 120°C
- Rated voltage: 800 V
- Rated current: 76A
- Max. conductor cross-section: 16 mm²
- Min. conductor cross-section: 2.5 mm²
- Connection type: PUSH IN, for plug-in cross-connector
- Number of potentials: 1
- Number of levels: 1
- Clamping points per level: 2
- Approvals: IECEx, ATEX, CSA, UL
- Suitable for snap-on mounting on TS 35 rail
- Flammability rating: UL 94 V-0
Buy the Weidmueller Series PDU: Power Distribution Terminal 16 mm2 800 V 76 A 1896400000
Purchase the Weidmueller PDU 16 D-32758 online today to ensure a dependable connection in your control panel or industrial setup. Featuring PUSH IN technology, it simplifies wiring with secure and easy insertion of conductors up to 16 mm². With a voltage rating of 800 V and current capacity of 76 A, this terminal offers robust and safe power distribution. Its compact size, durable construction, and easy snap-on mounting make it ideal for quick installation and maintenance. Elevate your electrical systems with this high-quality component available for purchase online now.
Buy Weidmueller PDU 16 D-32758 now and experience unmatched reliability and performance in industrial power distribution solutions.
