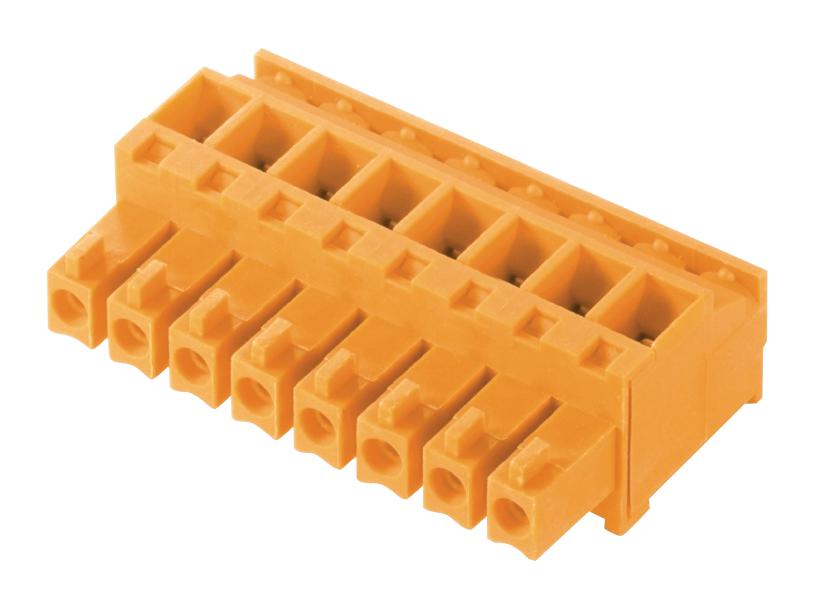

WEIDMULLER 1939870000 PCB Plug-in Connector
The Weidmuller OMNIMATE Signal series BC/SC 3.81 BCZ 3.81/06/90 SN OR BX is a PCB plug-in connector designed for reliable and flexible wire connections. It offers three wire-outlet directions (180°, 90°, and 270°) to accommodate various layout requirements. The connector features a clamping yoke screw system, three housing shapes (standard, flange with screw, and release latch), and is compatible with customary connector layouts. It is ideal for applications requiring space for labelling and coding, and is commonly used in industrial automation, control cabinets, and power distribution systems. The connector is RoHS compliant and offers a wide range of technical specifications including rated voltage up to 320V and a current carrying capacity of 17.5A.
WEIDMULLER 1939870000 PCB Plug-in Connector Specifications:
- Base Material: PA GF
- Color: Orange
- Pitch (P) in inches: 0.15 inch
- Pitch (P) in mm: 3.81 mm
- Number of Poles: 6
- Outlet Direction: 90°
- L1 (in inches): 0.75 inch
- L1 (in mm): 19.05 mm
- Clamping Range (min): 0.08 mm²
- Clamping Range (max): 1.5 mm²
- Wire Connection Cross Section AWG (min): AWG 28
- Wire Connection Cross Section AWG (max): AWG 16
- Stripping Length: 7 mm
- Tightening Torque (max): 0.25 Nm
- Tightening Torque (min): 0.2 Nm
- Rated Current (min, Tu=20°C): 17.5 A
- Rated Current (max, Tu=20°C): 15.9 A
- Rated Current (min, Tu=40°C): 17.5 A
- Rated Current (max, Tu=40°C): 14.1 A
- Rated Voltage (IEC): 320 V
- Rated Impulse Voltage: 2.5 kV
- UL Voltage: 300 V
- UL Current: 10 A
- Flammability Rating: V-0
- Insulation Resistance: ≥ 108Ω
- Contact Surface: tinned
- Storage Temperature (max): 55 °C
- Operating Temperature (min): -50 °C
- Installation Temperature (min): -25 °C
- Operating Temperature (max): 120 °C
- Installation Temperature (max): 120 °C
- Volume Resistance: 6.00 mΩ
