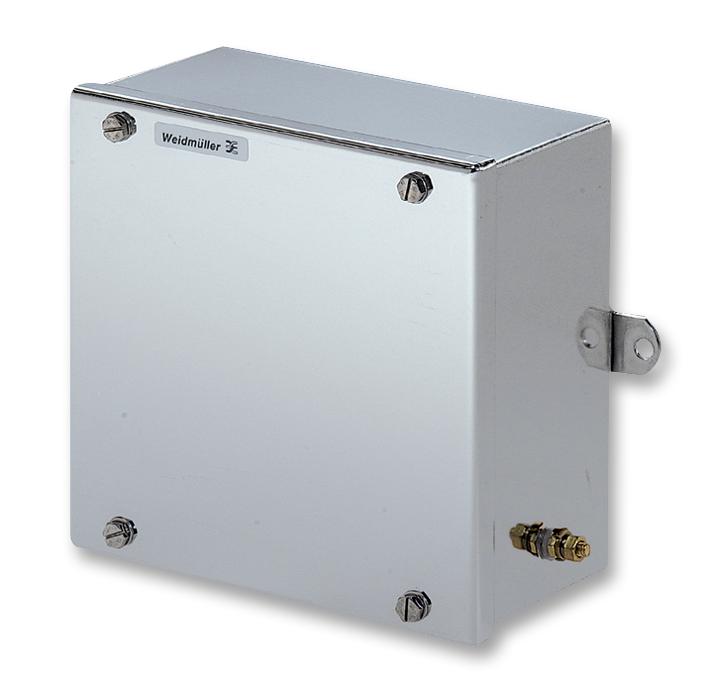

Weidmuller KLIPPONSTB3SS Small Terminal Box
The Klippon Small Terminal Box series combines durable stainless steel construction, high protection ratings, and ATEX approval, making it ideal for explosive environments, energy, and process industries. It features mirror-polished 1.4404 (316L) stainless steel, impact resistance, flexible mounting options, and a temperature range of -60°C to +100°C. The IP66 rating ensures reliable protection against dust and water ingress, while welded seams and mounting feet facilitate easy installation. Suitable for hazardous locations with certifications for IECEx, ATEX, cULus, and others, this enclosure ensures robust, secure, and corrosion-resistant terminal management.
Weidmuller KLIPPONSTB3SS Small Terminal Box Specifications:
- Material: Stainless steel 1.4404 (316L), mirror polished
- Material thickness: 1.5 mm
- Dimensions: Height 190 mm, Width 190 mm, Depth 100 mm
- Protection degree: IP66, NEMA 4, NEMA 4x
- Impact resistance: 10J standard
- Operating temperature: Min -60°C, Max +100°C
- Seal material: Silicone
- Surface finish: Mirror polished
- Mounting: Welded-on mounting feet with 8mm holes
- Enclosure attachment: Welded TAS 20 rail, lid secured with MB hexagonal screw
- Certifications: ATEX, IECEx, cULus, Lloyds Register, GOST, INMETRO
- Additional: Earthing stud, laser cut weld seams, suitable for explosive risk zones
Buy the Weidmueller Series STB Small Terminal Box: KLIPPON STB 3 SS
Order the Weidmueller KLIPPON STB 3 SS Small Terminal Box online today and benefit from its durable stainless steel construction, IP66 protection, and ATEX certification. Designed for hazardous zones and industrial environments, it offers corrosion resistance, impact durability, and flexible mounting options. Its precise engineering ensures secure terminal connections and reliable sealing, making it ideal for energy, process, and transportation industries. Purchase online to enjoy quick delivery, certified quality, and robust performance for your critical applications.
Get Weidmueller KLIPPON STB 3 SS today—built for high protection, corrosion resistance, and hazardous environment compliance.
