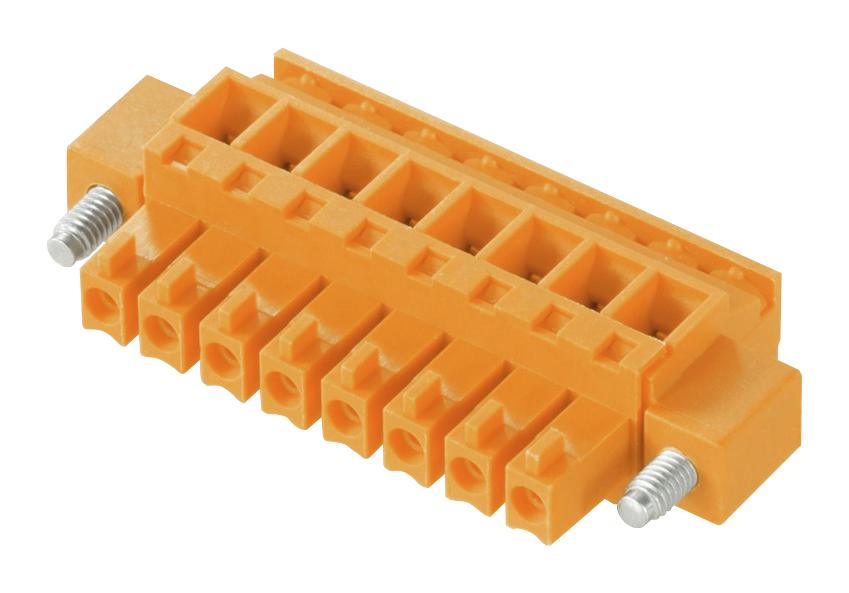

WEIDMULLER 1940010000 Signal Connector
The WEIDMULLER OMNIMATE Signal series BC/SC 3.81 BCZ 3.81/05/90F SN OR BX is a versatile PCB plug-in connector designed for connecting wires. It utilizes a clamping-yoke screw system for secure connections and offers flexible design options with three wire-outlet directions (180°, 90°, and 270°). The connector's 3.81mm pitch ensures compatibility with standard layouts, and it's available with standard, flange, or release latch housing shapes. It's suitable for a wide range of industrial applications requiring reliable and space-efficient wire connections.
WEIDMULLER 1940010000 Signal Connector Specifications:
- Base Material: PA GF
- Color: Orange
- Insulating Material Group: II
- Insulation Resistance: ≥ 108Ω
- Contact Surface: tinned
- Flammability Rating: UL 94 V-0
- Storage Temperature Max: 55 °C
- Operating Temperature Min: -50 °C
- Temperature Range Installation Min: -25 °C
- Storage Temperature Min: -25 °C
- Max Relative Humidity During Storage: 80 %
- Operating Temperature Max: 120 °C
- Temperature Range Installation Max: 120 °C
- Clamping Range Min: 0.08 mm²
- Wire Connection Cross Section AWG Min: AWG 28
- Solid Wire Min H05(07)V-U: 0.2 mm²
- Flexible Wire Min H05(07)V-K: 0.2 mm²
- Wire End Ferrule Min: 0.2 mm²
- Clamping Range Max: 1.5 mm²
- Wire Connection Cross Section AWG Max: AWG 16
- Solid Wire Max H05(07)V-U: 1.5 mm²
- Flexible Wire Max H05(07)V-K: 1.5 mm²
- Plastic Collar Ferrule Max: 1.5 mm²
- Wire End Ferrule Max: 1.5 mm²
- Plug Gauge Diameter: 2.4 mm x 1.5 mm
- Rated Current Min (Tu=20°C): 17.5 A
- Rated Current Min (Tu=40°C): 14.1 A
- Rated Voltage Surge Class III/2: 160 V
- Rated Voltage Surge Class II/2: 320 V
- Short-Time Withstand Current: 76 A
- Rated Voltage Usegroup B: 300 V
- Rated Current Usegroup B: 10 A
- Rated Voltage Usegroup C: 50 V
- Rated Current Usegroup C: 8 A
- Touch-Safe Protection: DIN VDE 57 106
- IP Rating: IP 20
- Can Be Coded: Yes
- Tightening Torque Screw Flange Min: 0.2 Nm
- Tightening Torque Min: 0.25 Nm
- Screwdriver Blade: 0.4 x 2.5
- Plugging Cycles: 25
