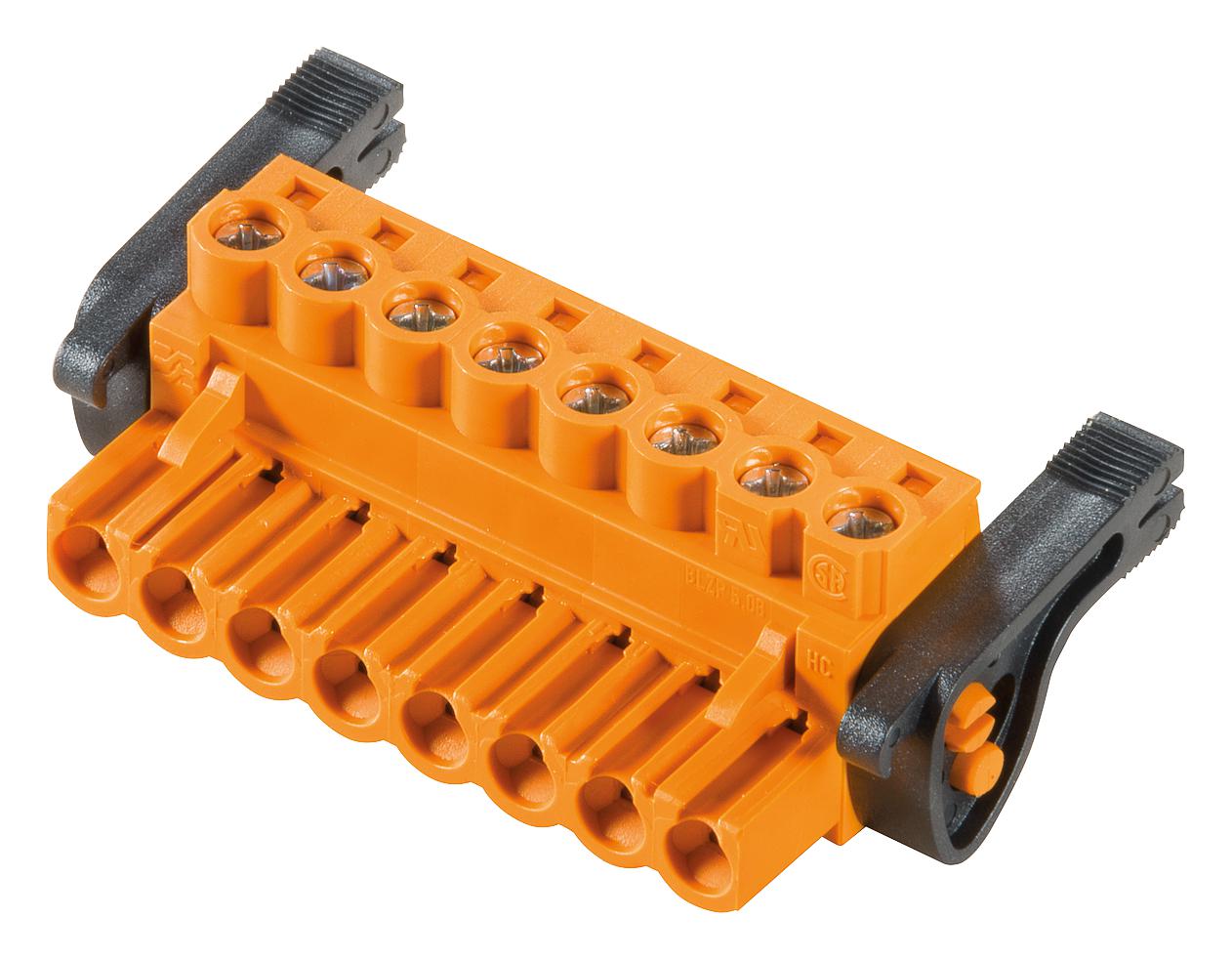

WEIDMULLER 1944900000 Signal Connector
This female socket connector features a clamping-yoke screw system designed for reliable wire connections in electronic and electrical applications. With a 180° outlet alignment, it provides sufficient space for labelling and coding, making it suitable for complex wiring systems. The connector is fastened via a flange or release latch, ensuring secure installation. It includes an integrated plus/minus screw for correct polarity connection and is delivered with open clamping yokes for flexible wiring. Ideal for PCB mounting, it supports wire sizes up to 4 mm² and offers robust protection against faulty insertion, making it ideal for high-current environments.
WEIDMULLER 1944900000 Signal Connector Specifications:
- Type of connection: Socket connector
- Number of poles: 9
- Pitch: 5.08 mm
- Wire connection method: Clamping yoke connection
- Clamping range: Max. 4 mm²
- Rated voltage: 400 V (IEC) / 300 V (UL/UR)
- Rated current: 20 A (UL/UR) / 23 A (IEC) at 20°C
- Maximum conductor size: AWG 12 (UL/UR), 4 mm² (IEC)
- Operating temperature range: -60°C to +100°C
- Insulating material: PBT, orange, V-0 flammability rating
- Contact material: Copper alloy, tinned surface
- Open clamping yokes included
- Tightening torque: Min. 0.4 Nm, Max. 0.5 Nm
- Screwdriver size: 0.6 x 3.5 mm (PH 1)
- Wire strip length: 7 mm
- Certification: UL, CSA, IEC
- Dimensions: Length 40.64 mm, width fits 5.08 mm pitch
- Protection: Finger-safe, insulation resistance 210 MΩ
Buy the Buy Weidmueller Signal Series BL/SL 5.08 Part Number 1944900000 Online
Purchase the Weidmueller Signal Series BL/SL 5.08 female socket connector with 9 poles and 180° outlet online today. Featuring a clamping-yoke screw system, open yokes, and integrated plus/minus screw, it ensures secure, reliable wiring for high-current applications. Its robust design supports wire sizes up to 4 mm², provides finger-safe protection, and is suitable for PCB mounting. With UL, CSA, and IEC certifications, this connector guarantees safety, durability, and ease of installation for professional electronic and electrical projects.
Order your Weidmueller Series BL/SL 5.08 Part Number 1944900000 today and equip your electrical systems with reliable, high-current PCB connectors for secure wiring.
