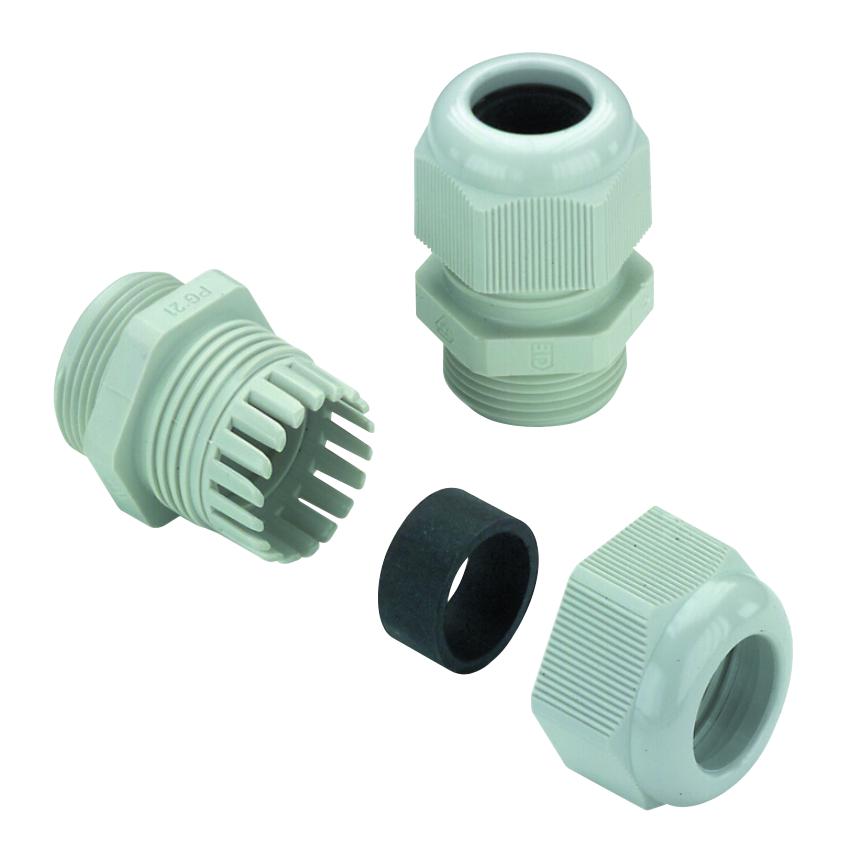

Weidmuller VGM251K68 Cable Gland
The cable gland VG M25-1/K68 is designed for robust sealing in demanding industrial environments, complying with IP 68, IP 67, IP 66, and IP 54 standards. Made from high-quality polyamide 6, it features a 25 mm external thread and is suitable for cable diameters ranging from 11 mm to 17 mm. Its 8 mm thread length guarantees secure attachment, while the moulded sealing lip ensures waterproof and dustproof protection. Operating within -30°C to 100°C, it’s ideal for hazardous settings requiring reliable cable sealing and environmental protection. The gland weighs approximately 7.929 grams and measures 43 mm in length, making it a compact solution for industrial cable management.
Weidmuller VGM251K68 Cable Gland Specifications:
- Material: Polyamide 6
- External thread: M25
- Thread length: 8 mm
- Outer cable diameter: min 11 mm, max 17 mm
- Protection degree: IP54, IP66, IP67, IP68 - 5 bar (30 min.)
- Operating temperature range: -30°C to +100°C
- Dimensions: Length 43 mm, 1.693 inches
- Weight: 7.929 grams
- Flammability rating: UL 94
- Standards: DIN EN 62444, EN 62444
- Torque for cap nut: 7-9 Nm
- Sealing with moulded sealing lip
Buy the Weidmiiller Series Cable Glands VG M25-1/K68: 1909870000
Secure your cables with the reliable Weidmiiller VG M25-1/K68 cable gland, offering IP68, IP67, adherence to international standards, and robust polyamide construction. Designed for cables 11 to 17mm in diameter, it features a moulded sealing lip for waterproofing and dustproof protection. With a compact size of 43mm length and a weight of 7.929 grams, it’s suitable for demanding industrial applications, operating from -30°C to 100°C. Buy online now to ensure durable and safe cable connections in challenging environments.
Order your Weidmiiller Series VG M25-1/K68 cable gland today and ensure excellent sealing and environmental protection for your cables in harsh conditions.
Frequently Asked Questions
Where can I buy Weidmuller VGM251K68?
You can click on the BUY or RFQ button to purchase VGM251K68 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part VGM251K68?
You can download the VGM251K68 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of VGM251K68?
Weidmuller
