WEIDMULLER 1961980000 Heat Shrink Sleeve Marker

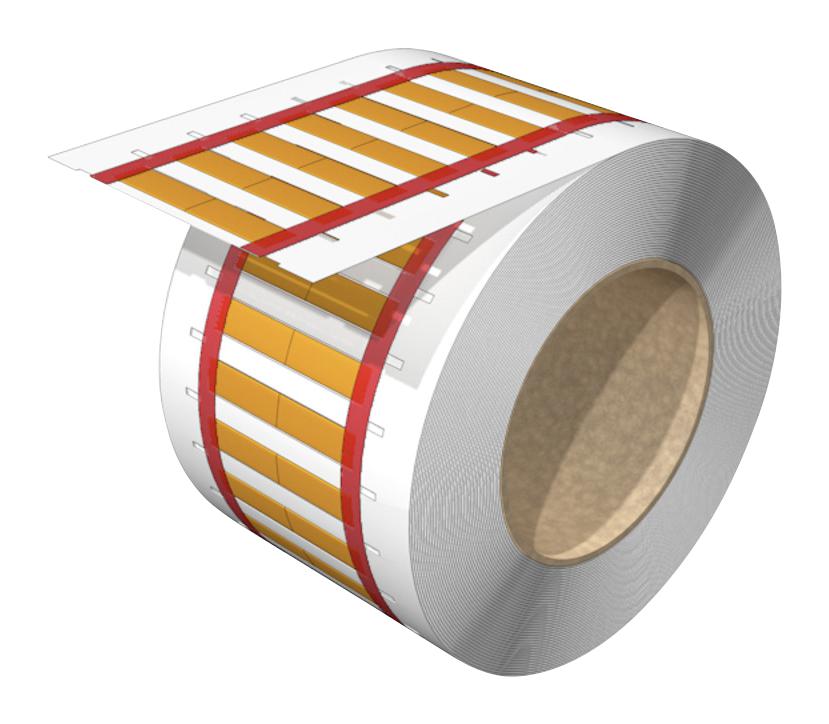

The Weidmuller HSS-HF 3/16 2.8-4.2/25Y heat-shrinkable TwinMark sleeve provides a reliable solution for marking and insulating conductors and cables ranging from 1.2 to 24 mm in diameter. Its flexible, heat-shrink material ensures a tight and secure fit, saving valuable space. The sleeve is printable on both sides, improving readability, and is compatible with standard hot-air guns for shrinking. Ideal for applications in transportation and other industries, this halogen-free sleeve simplifies cable management and identification. It is delivered on a reel for easy handling and integration into marking processes.
WEIDMULLER 1961980000 Heat Shrink Sleeve Marker Specifications:
- width: 8.4 mm
- height: 25.4 mm
- depth: 0.77 mm
- net_weight: 0.355 g
- width_inches: 0.331 inch
- height_inches: 1 inch
- depth_inches: 0.03 inch
- material: Polyolefine
- operating_temperature_range: -55...105 °C
- type_of_printing: neutral
- conductor_o_d: 2.8 - 4.2 mm
- conductor_o_d_min: 2.8 mm
- conductor_cross_section_min: 1.5 mm²
- conductor_o_d_max: 4.2 mm
- conductor_cross_section_max: 4 mm²
- rate_of_shrinkage: 2:1
- recommended_shrinking_temperature: 90 °C
- etim_3_0: EC001530
- etim_5_0: EC001288
- etim_4_0: EC001288
- etim_6_0: EC001530
- unspsc: 30-21-18-01
- eclass_6_2: 27-40-04-01
- eclass_8_1: 27-14-91-03
- eclass_9_1: 27-40-04-01
- eclass_5_1: 27-14-91-29
- eclass_7_1: 27-14-91-29
- eclass_9_0: 27-40-04-01
- halogen: No
- material_colour: according to resistance code 4
