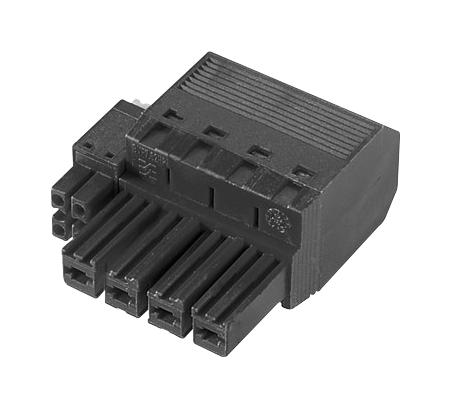

WEIDMULLER 1156480000 Power Connector
The Weidmuller BVF 7.62HP/05/180 BCF/08R SN BK BX is a combined 180° female plug designed for power and signal connections with optional shielding. It utilizes PUSH IN connection technology and a self-locking middle flange to reduce space requirements. Meeting IEC 61800-5-1 and UL 1059 standards, this connector is ideal for applications requiring robust power and signal transmission, such as connecting servo and asynchronous drives. Its pluggable shield connection simplifies installation and maintenance.
WEIDMULLER 1156480000 Power Connector Specifications:
- Type: PCB plug-in connector, female plug
- Order No.: 1156480000
- Version: 7.62 mm, No. of poles: 5, 180°, PUSH IN
- GTIN(EAN): 4032248943272
- Qty.: 25pc(s).
- Product data: IEC: 1000 V / 38 A / 0.5 - 10 mm²; UL: 600 V/35 A/AWG 24 - AWG 8
- Packaging: Box
- Net weight: 28 g
- Product family: OMNIMATE Power - series
- Wire connection method: PUSH IN
- Pitch in inches: 0.3 inch
- No. of poles: 5
- L1 in inches: 1.2 inch
- Pin seriesquantity: 1
- Touch-safe protection: Safe from finger touch
- Volume resistance: 4.50 mΩ
- Strippinglength: 12 mm
- Pluggingcycles: 25
- Withdrawal force per pole: 7 N
- Pitch in mm: 7.62 mm
- Conductor outlet direction: 180°
- L1 in mm: 30.48 mm
- Number of rows: 1
- Rated cross-section: 6 mm²
- Can be coded: Yes
- Screwdriver blade: 0.6 x 3.5
- push-in force/pole: 12 N
- Insulatingmaterial: PA GF
- Colour: Black
- CTI: ≥ 500
- UL 94 flammabilityrating: V-0
- Contact surface: tinned
- Storage temperature,min.: -25 °C
- Max. relative humidityduringstorage: 80 %
- Operatingtemperature,max.: 125 °C
- Temperature range, installation, max.: 125 °C
- Clampingrange,min.: 0.5 mm²
- Clampingrange,max.: 10 mm²
- Rated current, max. no. of poles (Tu=20°C): 38 A
- Rated voltage for surge voltage class / pollution degree III/2: 1,000 V
- Rated impulse voltage for surge voltage class/ pollution degree III/3: 8 kV
- Rated voltage(UsegroupB): 600 V
- Rated current(usegroupC): 33 A
- Wire cross-section,AWG,min.: AWG 24
