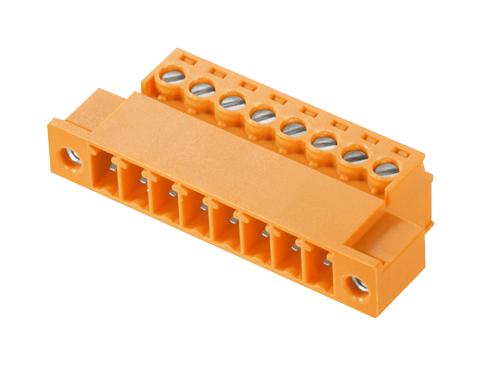

WEIDMULLER 1971000000 Industrial PCB Connector
The SCZ 3.81 series from Weidmüller offers a versatile and reliable plug-in connector suitable for straight wire connections in industrial settings. Designed with clamping-yoke screw connection, this male plug features a 3.81 mm pitch, 10 poles, and a 180° conductor outlet direction. It can be used as a wire-to-wire connector or as a mating plug for PCB socket blocks, with options for flanges and tool-free disconnects. Its robust construction ensures safe, stable, and codeable connections, making it ideal for industrial automation and control applications.
WEIDMULLER 1971000000 Industrial PCB Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of poles: 10
- Rated voltage IEC: 320 V
- Rated current IEC: 17.5 A (at 20°C), 15.2 A (at 40°C)
- Rated voltage UL: 300 V
- Rated current UL: 10 A
- Wire cross-section: AWG 28 - AWG 16 (Min. 0.08 mm², Max. 1.5 mm²)
- Clamping range: 0.08 mm² to 1.5 mm²
- Insulating material: PA GF (orange, RAL 2000)
- Flammability rating: UL 94 V-0
- Operating temperature: -60°C to 120°C
- Storage temperature: -25°C to 55°C
- Protection class: IP20
- Screw type: M2 with 0.4 x 2.5 mm screwdriver
- Number of install cycles: 25 push-in
- Tightening torque: min. 0.2 Nm, max. 0.3 Nm
- Compliance: IEC 60664-1, IEC61984, UL 1059, CSA
- Certifications: RoHS, UL, CSA
- Dimensions: Length varies with model, pitch 3.81 mm, conductor outlet at 180°
- Material: PA GF, flammability V-0
Buy the Weidmueller 1971000000 – Reliable PCB Connector for Industrial Applications
Secure your industrial wiring with Weidmueller's high-quality PCB connector. Designed for quick and reliable connections with screw mounting, it features a compact 3.81mm pitch, 10 poles, and a robust construction rated for 320V/17.5A. Ideal for control panels, automation systems, and machinery, it ensures safe and efficient wire management. Available in various flange options and with a tool-free disconnect latch, this connector simplifies installation and maintenance, delivering durable performance in demanding environments. Order online today for optimal connectivity in your automation projects.
Buy Weidmueller 1971000000 now and experience unmatched reliability and performance in industrial wiring solutions.
Frequently Asked Questions
Where can I buy WEIDMULLER 1971000000?
You can click on the BUY or RFQ button to purchase 1971000000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1971000000?
You can download the 1971000000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1971000000?
WEIDMULLER
