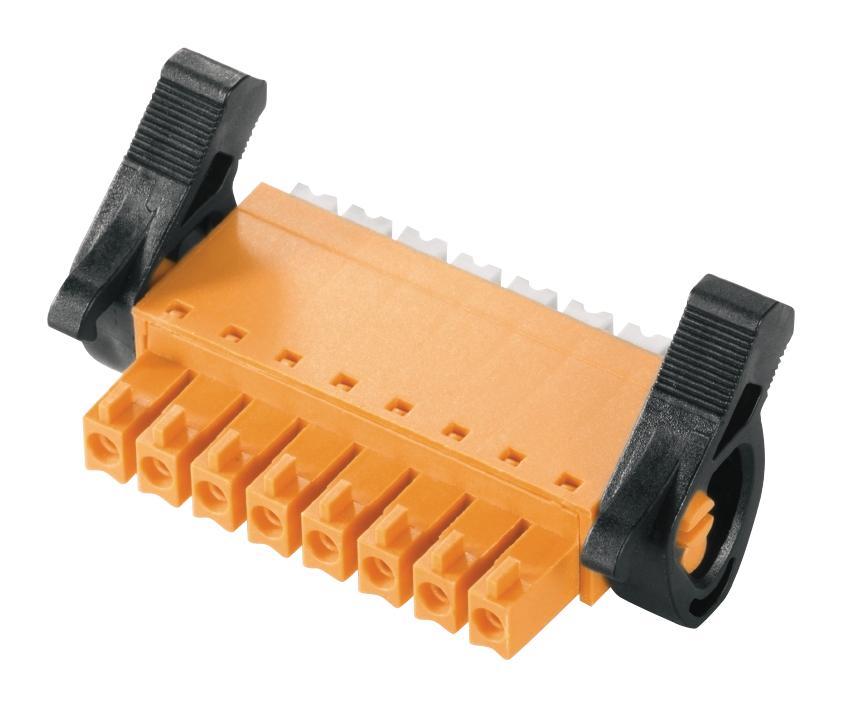

WEIDMULLER 1972260000 PCB Signal Connector
The Weidmueller BCF 3.81/08/180LR SN OR BX is a compact, 3.81 mm pitch PCB connector designed for quick, tool-free wire insertion with push-in technology. It features 8 poles with a maximum clamping range of 1.5 mm, suitable for solid or flexible conductors, and complies with IEC and UL standards for safety and reliability. The connector's orange PA GF insulation and touch-safe protection ensure safe handling in industrial environments. Ideal for high-density applications, it simplifies wiring with integrated push buttons and offers coding options for easy identification, making it a versatile choice for automation and control systems.
WEIDMULLER 1972260000 PCB Signal Connector Specifications:
- Pitch: 3.81 mm (0.15 inch)
- Number of Poles: 8
- No. of Rows: 1
- Rated Voltage IEC: 320 V
- Rated Current IEC: 17.5 A
- Rated Voltage UL: 300 V
- Rated Current UL: 10 A
- Wire Cross-section: AWG 26 to AWG 16
- Clamping Range: 0.14 mm² to 1.5 mm²
- Insulation Material: PA GF (Orange)
- Flammability Rating: UL 94 V-0
- Contact Material: Tin-plated
- Touch-safe protection: Yes (DIN VDE 57 106)
- Operating Temperature Range: -60°C to 120°C
- Max. Relative Humidity During Storage: 80%
- Certification: IEC, UL, CSA
- Durability: 25 plug cycles
- Approvals: cURus (cURus Certificate No. 60693), CSA (Certificate No. 200039-112)
- Dimensions: Length 26.67 mm, Width suitable for 8-pole connector
- Assembly: Push-in, tool-free, with integrated release latch
Buy the Buy Weidmueller 3.81 mm Connector Part Number 1972260000 Online
Enhance your project with the Weidmueller BCF 3.81/08/180LR SN OR BX connector, designed for quick, tool-free wire connections in control and automation systems. Featuring 8 poles with a 3.81 mm pitch, it supports a wide range of wire sizes from AWG 26 to AWG 16 for solid or flexible conductors. Compliant with IEC, UL, and CSA standards, it offers safe, reliable operation at temperatures from -60°C to 120°C. Its compact design optimizes space, making it the perfect choice for high-density wiring in industrial environments.
Order your Weidmueller SeriesBCF 3.81/08/180LR SN OR BX today and equip your automation projects with reliable, high-density connector technology.
Frequently Asked Questions
Where can I buy WEIDMULLER 1972260000?
You can click on the BUY or RFQ button to purchase 1972260000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1972260000?
You can download the 1972260000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1972260000?
WEIDMULLER
