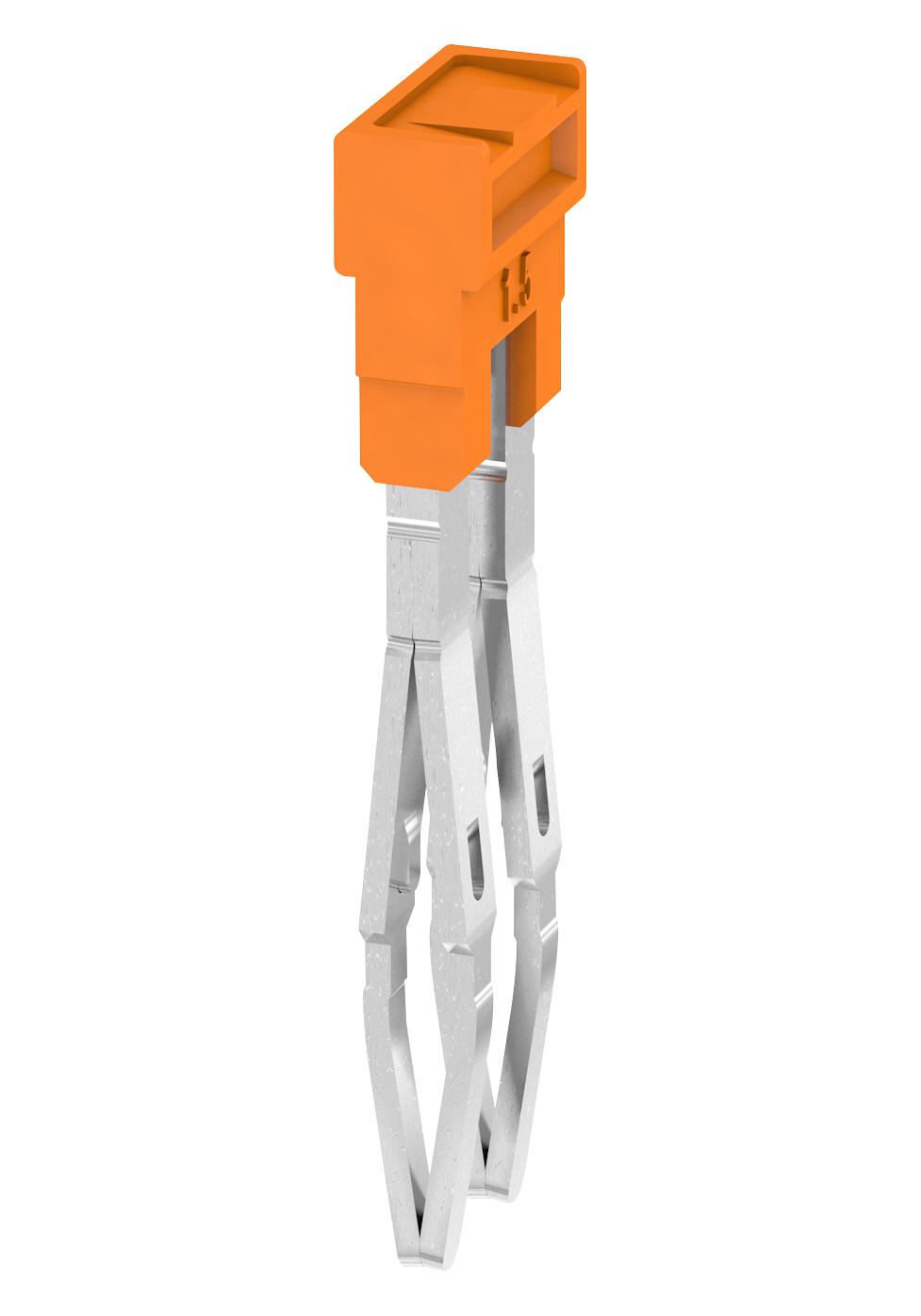

WEIDMULLER 1985410000 Spring Connection Terminal Block
The Weidmuller ZQV 1.5N/2 terminal block features innovative PUSH IN technology, significantly reducing wiring time. This design guarantees high conductor pull-out forces and simplifies handling for all conductor types. Constructed from Wemid with a V-0 flammability rating, it offers robust performance and safety in various industrial applications. The terminal block is designed for plugged fixing and has a pitch of 3.5mm, rated current of 17.5A and is explosion-tested.
WEIDMULLER 1985410000 Spring Connection Terminal Block Specifications:
- Order No.: 1985410000
- GTIN(EAN): 4050118369861
- Quantity: 60 pc(s).
- Width: 5.5 mm
- Width(inches): 0.217 inch
- Height: 21.9 mm
- Height(inches): 0.862 inch
- Depth: 2.8 mm
- Depth(inches): 0.11 inch
- Net weight: 0.563 g
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: Orange
- Explosion-tested version: Yes
- Type of fixing: Plugged
- Pitch in mm (P): 3.5 mm
- Rated current: 17.5 A
- ETIM 6.0: EC000489
- eClass 9.1: 27-14-11-40
- eClass 6.2: 27-14-11-40
