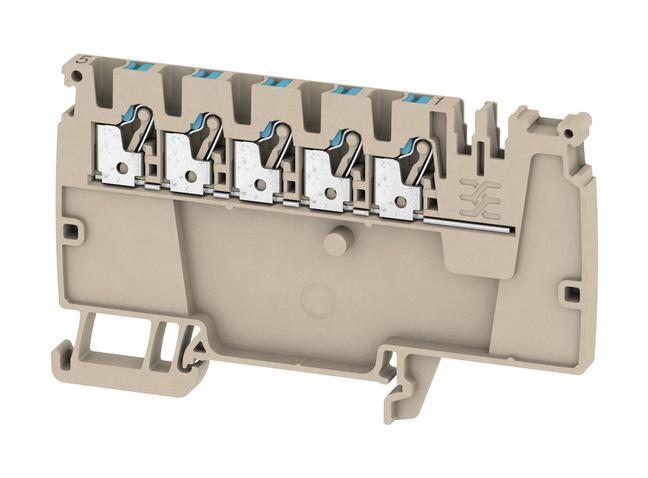

WEIDMULLER 1988100000 AAP Modular Distribution Terminal

WEIDMULLER 1988100000 AAP Modular Distribution Terminal Specifications:

• Type: AAP12 2.5 LI BL
• Order No.: 1988100000
• Version: Modular distribution terminals, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
• GTIN(EAN): 4050118372762
• Quantity: 50 pc(s).
• Width: 5.1 mm
• Height: 89 mm
• Depth: 53.5 mm
• Depth including DIN rail: 54 mm
• Width(inches): 0.201 inch
• Height(inches): 3.504 inch
• Depth(inches): 2.106 inch
• Net weight: 12.674 g
• Storage temperature,max.: 55 °C
• Storage temperature: -25 °C...55 °C
• Continuous operating temp., max.: 130 °C
• Storage temperature,min.: -25 °C
• Continuous operating temp.,min.: -60 °C
• Material: Wemid
• Colour of operational elements: blue
• Colour: dark beige
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV17ATEX8030U
• Max. voltage(ATEX): 690 V
• Wire cross section max.(ATEX): 2.5 mm²
• Current(IECEX): 20 A
• Marking EN 60079-7: Ex eb II C Gb
• Certificate No.(IECEX): IECEXTUR17.0015U
• Current(ATEX): 20 A
• Max. voltage(IECEX): 690 V
• Wire cross section max.(IECEX): 2.5 mm²
• Ex 2014/34/EU label: II 2 G D
• Number of levels: 1
• Number of potentials per tier: 1
• PE connection: No
• N-function: No
• PEN function: No
• Number of potentials: 1
• Number of clamping points per level: 5
• Levels cross-connected internally: No
• Rail: TS 35
• PE function: No
• Installation advice: Rail Snap-on
• Type of mounting: TS 35
• Open sides: right
• Type of fixing: Snap-on
• With snap-in pegs: No
• Certificate No.(CSA): 200039-70089609
• Current size C(CSA): 20 A
• Voltage size B(CSA): 600 V
• Voltage size D(CSA): 600 V
• Wire cross section min. (CSA): 28 AWG
• Current size B(CSA): 20 A
• Current size D(CSA): 5 A
• Voltage size C(CSA): 600 V
• Wire cross section max.(CSA): 12 AWG
• Blade size: 0.6 x 3.5 mm
• Clamping range, min.: 0.14 mm²
• Connection cross-section,stranded,min.: 0.5 mm²
• Gauge to IEC 60947-1: A3
• Strippinglength: 10 mm
• Twin wire-end ferrules,min.: 0.5 mm²
• Wire connection cross section AWG,max.: AWG 12
• Wire connection cross section, finely stranded, max.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 2.5 mm²
• Clamping range,max.: 2.5 mm²
• Connection cross-section, stranded,max.: 2.5 mm²
• Connection direction: top
• Number of connections: 5
• Twin wire-end ferrules,max.: 0.75 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG,min.: AWG 28
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 2.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 2.5 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Rated cross-section: 2.5 mm²
• Rated current: 24 A
• Standards: IEC/EN 60947-7-1:2009
• Power loss in accordance with IEC 60947-7-x: 0.77 W
• Pollution severity: 3
• Rated voltage: 800 V
• Current at maximum wires: 24 A
• Volume resistance according to IEC 60947-7-x: 1.33 mΩ
• Rated impulse withstand voltage: 8 kV
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min.(cURus): 28 AWG
• Conductor size Field wiringmin.(cURus): 28 AWG
• Current size C(cURus): 20 A
• Voltage size B(cURus): 600 V
• Voltage size D (cURus): 600 V
• Conductor size Factory wiring max.(cURus): 12 AWG
• Conductor size Field wiring max. (cURus): 12 AWG
• Current size B(cURus): 20 A
• Current size D(cURus): 5 A
• Voltage size C(cURus): 600 V
• ETIM 6.0: EC000897
• eClass 9.0: 27-14-11-20
• eClass 10.0: 27-14-11-20
• ETIM 7.0: EC000897
• eClass 9.1: 27-14-11-20
