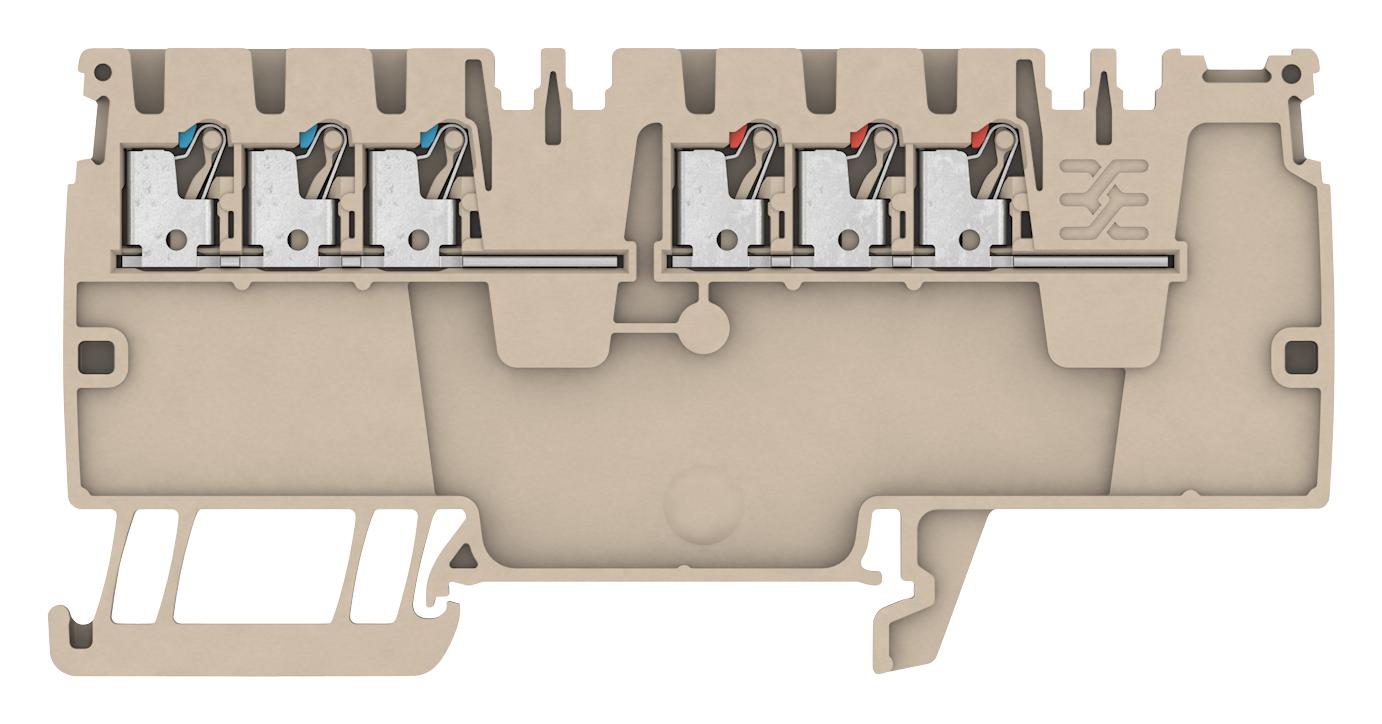

WEIDMULLER 1988280000 Modular Distribution Terminal

WEIDMULLER 1988280000 Modular Distribution Terminal Specifications:

• Type: AAP13 1.5 LI-LI
• Order No.: 1988280000
• Version: Modular distribution terminals, PUSH IN, 1.5 mm², 250 V, 16 A, Dark Beige
• GTIN(EAN): 4050118372878
• Qty.: 50 pc(s).
• Width: 3.5 mm
• Height: 96 mm
• Depth: 47 mm
• Depth including DIN rail: 48 mm
• Width(inches): 0.138 inch
• Height(inches): 3.78 inch
• Depth(inches): 1.85 inch
• Net weight: 9.019 g
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• Material: Wemid
• Colour of operational elements: red / blue
• Colour: Dark Beige
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV17ATEX8030U
• Max. voltage(ATEX): 220 V
• Wire cross section max.(ATEX): 1.5 mm²
• Current (IECEX): 13 A
• Certificate No.(IECEX): IECEXTUR17.0015U
• Current(ATEX): 13 A
• Max. voltage(IECEX): 220 V
• Wire cross section max. (IECEX): 1.5 mm²
• Number of levels: 1
• Number of potentials per tier: 2
• PE connection: No
• N-function: No
• PEN function: No
• Number of potentials: 2
• No. of clamping points per level: 6
• Levels cross-connected internally: No
• Mounting rail: TS 35
• PE function: No
• Installation advice: Mounting rail, Snap-on
• Open sides: right
• Type of mounting: TS 35
• Blade size: 0.4 x 2.0 mm
• Clamping range, min.: 0.14 mm²
• Connection cross-section, stranded, min.: 0.5 mm²
• Gauge to IEC 60947-1: A1
• Stripping length: 8 mm
• Wire connection cross section AWG, max.: AWG 14
• Wire connection cross-section, finely stranded, max.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 1.5 mm²
• Clamping range, max.: 1.5 mm²
• Connection cross-section, stranded, max.: 1.5 mm²
• Connection direction: top
• Number of connections: 6
• Type of connection: PUSH IN
• Wire connection cross section AWG, min.: AWG 26
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Rated cross-section: 1.5 mm²
• Rated current: 16 A
• Standards: IEC/EN 60947-7-1:2009
• Pollution severity: 3
• Rated voltage: 250 V
• Current at maximum wires: 16 A
• Rated impulse withstand voltage: 4 kV
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min. (cURus): 26 AWG
• Conductor size Field wiring min. (cURus): 26 AWG
• Current size C (cURus): 13 A
• Voltage size B (cURus): 150 V
• Voltage size D (cURus): 300 V
• Conductor size Factory wiring max. (cURus): 14 AWG
• Conductor size Field wiring max. (cURus): 14 AWG
• Current size B (cURus): 13 A
• Current size D (cURus): 5 A
• Voltage size C (cURus): 150 V
• ETIM 6.0: EC000897
• eClass 9.1: 27-14-11-20
• eClass 6.2: 27-14-11-20
