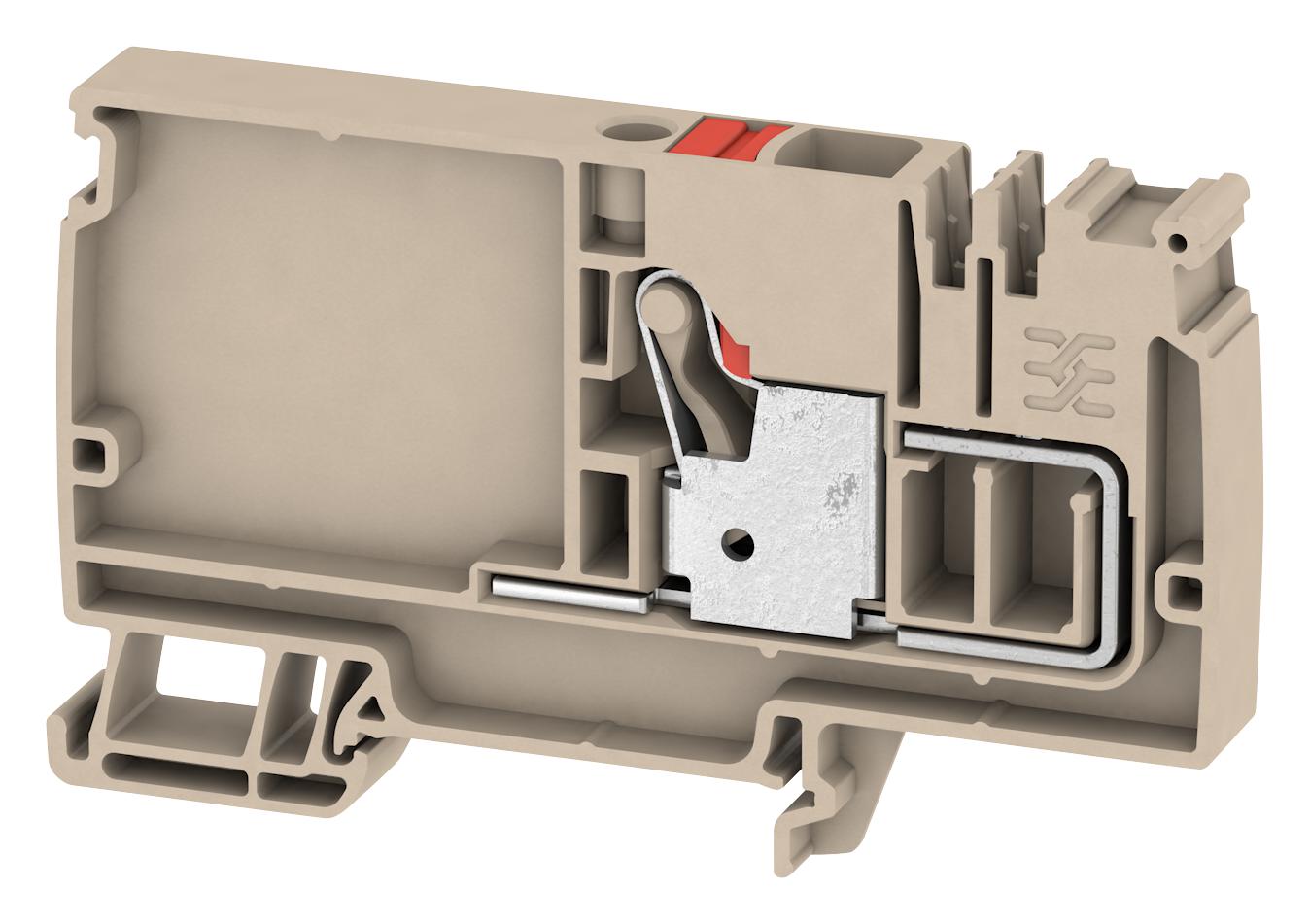

WEIDMULLER 1988190000 AAP12 10 LO RD Terminal Block
The Weidmuller AAP12 10 LO RD terminal block provides a reliable solution for surge current protection and central control voltage distribution in industrial settings. Part of the A-series, this terminal block is ideal for applications requiring integrated electronic load monitoring in compact spaces. It offers a PUSH IN connection for ease of use and supports a broad range of wire sizes, ensuring compatibility with various systems. The terminal block is constructed from Wemid material and features a dark beige color with red operational elements for clear identification. It is designed for mounting on TS 35 rails and is suitable for use in environments demanding high performance and reliability.
WEIDMULLER 1988190000 AAP12 10 LO RD Terminal Block Specifications:
- Type: AAP12 10 LO RD
- Order No.: 1988190000
- Version: Supply terminal, PUSH IN, 10 mm², 800 V, 57 A
- GTIN(EAN): 4050118372793
- Qty.: 20 pc(s).
- Width: 10 mm
- Height: 89 mm
- Depth: 53.5 mm
- Depth including DIN rail: 54 mm
- Width(inches): 0.394 inch
- Height(inches): 3.504 inch
- Depth(inches): 2.106 inch
- Net weight: 25.342 g
- Continuous operating temp., min.: -60 °C
- Continuous operating temp., max.: 130 °C
- Material: Wemid
- Colour of operational elements: Red
- Colour: Dark Beige
- UL 94 flammability rating: V-0
- Certificate No.(ATEX): TUEV17ATEX8030U
- Max. voltage(ATEX): 690 V
- Wire cross section max.(ATEX): 10 mm²
- Current (IECEX): 45 A
- Certificate No.(IECEX): IECEXTUR17.0015U
- Current(ATEX): 45 A
- Max. voltage(IECEX): 690 V
- Wire cross section max. (IECEX): 10 mm²
- Number of levels: 1
- Number of potentials per tier: 1
- PE connection: No
- N-function: No
- PEN function: No
- Number of potentials: 1
- No. of clamping points per level: 1
- Levels cross-connected internally: No
- Mounting rail: TS 35
- PE function: No
- Installation advice: Mounting rail, Type of fixing: Snap-on
- Open sides: right
- Type of mounting: TS 35
- Certificate No.(CSA): 200039-70089609
- Current size C(CSA): 51 A
- Voltage size B(CSA): 600 V
- Voltage size D(CSA): 600 V
- Wire cross section min. (CSA): 20 AWG
- Current size B(CSA): 51 A
- Current size D(CSA): 5 A
- Voltage size C(CSA): 600 V
- Wire cross section max.(CSA): 6 AWG
- Blade size: 1.0 x 5.5 mm
- Clamping range, min.: 0.5 mm²
- Connection cross-section, stranded, min.: 0.5 mm²
- Gauge to IEC 60947-1: A6
- Stripping length: 18 mm
- Twin wire-end ferrules, min.: 0.5 mm²
- Wire connection cross section AWG, max.: AWG 6
- Wire connection cross section, finely stranded, max.: 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
- Wire connection cross-section, solid core, max.: 10 mm²
- Clamping range, max.: 10 mm²
- Connection cross-section, stranded, max.: 10 mm²
- Connection direction: top
- Number of connections: 2
- Twin wire-end ferrules, max.: 4 mm²
- Type of connection: PUSH IN
- Wire connection cross section AWG, min.: AWG 20
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 10 mm²
- Wire connection cross-section, finely stranded, min.: 0.5 mm²
- Wire connection cross-section, solid core, min.: 0.5 mm²
- Rated cross-section: 10 mm²
- Rated current: 57 A
- Standards: In accordance with IEC 60947-7-1
- Pollution severity: 3
- Rated voltage: 800 V
- Current at maximum wires: 57 A
- Rated impulse withstand voltage: 8 kV
- Certificate No. (cURus): E60693
- Conductor size Factory wiring min. (cURus): 20 AWG
- Conductor size Field wiring min. (cURus): 20 AWG
- Current size C(cURus): 51 A
- Voltage size B(cURus): 600 V
- Voltage size D (cURus): 600 V
- Conductor size Factory wiring max. (cURus): 6 AWG
- Conductor size Field wiring max. (cURus): 6 AWG
- Current size B(cURus): 51 A
- Current size D(cURus): 5 A
- Voltage size C(cURus): 600 V
- ETIM 6.0: EC000897
- eClass 9.1: 27-14-11-20
- eClass 6.2: 27-14-11-20
