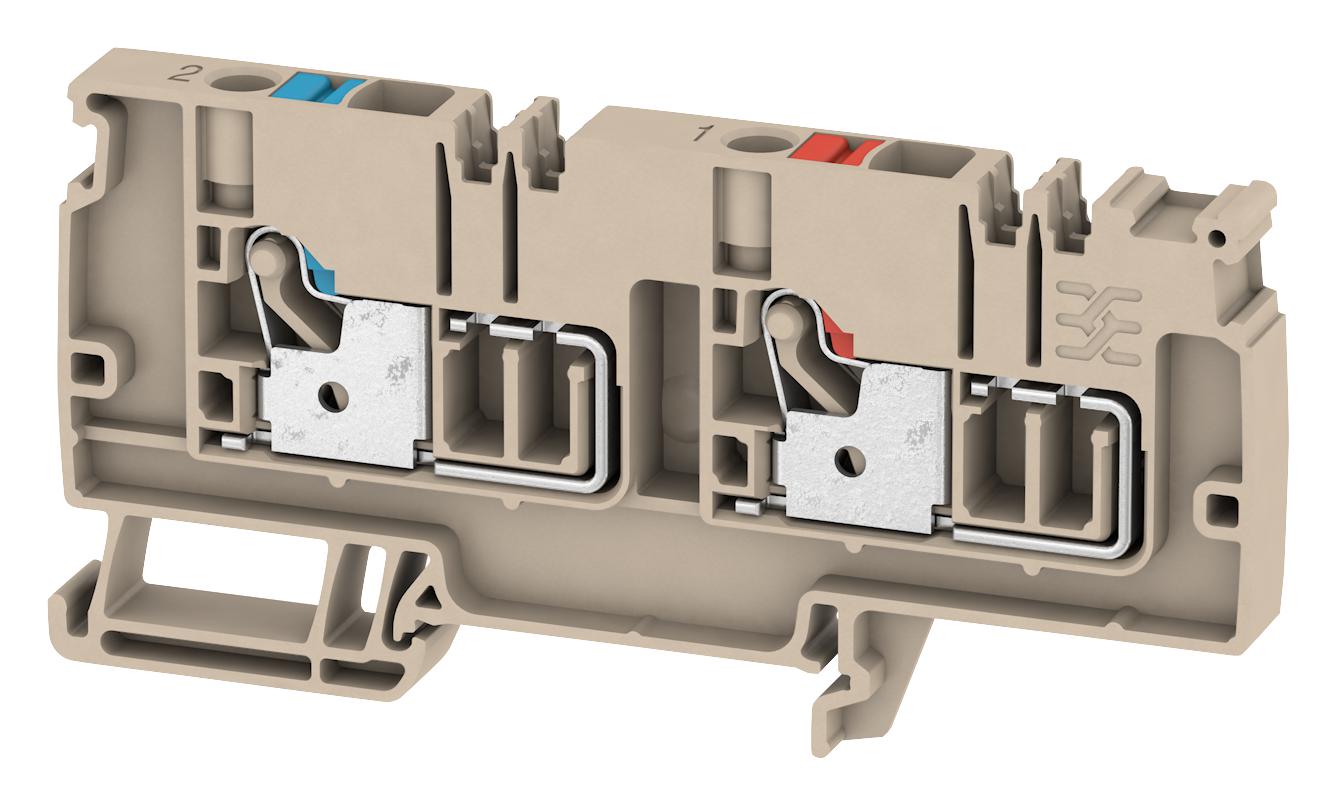

WEIDMULLER 1988260000 AAP13 6 LO-LO Terminal Block

WEIDMULLER 1988260000 AAP13 6 LO-LO Terminal Block Specifications:

• Type: AAP13 6 LO-LO
• Order No.: 1988260000
• Version: Supply terminal, PUSH IN, 6 mm², 250 V, 41 A
• GTIN(EAN): 4050118372892
• Quantity: 20 pc(s).
• Width: 8.1 mm
• Height: 96 mm
• Depth: 47 mm
• Depth including DIN rail: 48 mm
• Width(inches): 0.319 inch
• Height(inches): 3.78 inch
• Depth(inches): 1.85 inch
• Net weight: 22.31 g
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• Material: Wemid
• Colour of operational elements: red / blue
• Colour: Dark Beige
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV17ATEX8030U
• Max. voltage(ATEX): 220 V
• Wire cross section max.(ATEX): 6 mm²
• Current (IECEX): 33 A
• Certificate No.(IECEX): IECEXTUR17.0015U
• Current(ATEX): 33 A
• Max. voltage(IECEX): 220 V
• Wire cross section max. (IECEX): 6 mm²
• Number of levels: 1
• Number of potentials per tier: 2
• PE connection: No
• N-function: No
• PEN function: No
• Number of potentials: 2
• No. of clamping points per level: 2
• Levels cross-connected internally: No
• Mounting rail: TS 35
• PE function: No
• Installation advice: Mounting rail, Snap-on
• Open sides: right
• Type of mounting: TS 35
• Certificate No. (CSA): 200039-70089609
• Conductor size Factory wiring min.(CSA): 22 AWG
• Conductor size Field wiring min.(CSA): 22 AWG
• Current size C(CSA): 36 A
• Voltage size C(CSA): 150 V
• Wire cross section min. (CSA): 22 AWG
• Conductor size Factory wiring max.(CSA): 8 AWG
• Conductor size Field wiring max.(CSA): 8 AWG
• Current size B(CSA): 36 A
• Voltage size B(CSA): 150 V
• Wire cross section max.(CSA): 8 AWG
• Blade size: 1.0 x 5.5 mm
• Clamping range, min.: 0.5 mm²
• Connection cross-section, stranded, min.: 0.5 mm²
• Gauge to IEC 60947-1: A5
• Strippinglength: 12 mm
• Twin wire-end ferrules, min.: 0.5 mm²
• Wire connection cross section AWG, max.: AWG 8
• Wire connection cross section, finely stranded, max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 6 mm²
• Clamping range, max.: 6 mm²
• Connection cross-section, stranded, max.: 6 mm²
• Connection direction: top
• Number of connections: 2
• Twin wire-end ferrules, max.: 1.5 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG, min.: AWG 22
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 6 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 6 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Rated cross-section: 6 mm²
• Rated current: 41 A
• Standards: In accordance with IEC 60947-7-1
• Pollution severity: 3
• Rated voltage: 250 V
• Current at maximum wires: 41 A
• Rated impulse withstand voltage: 4 kV
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min.(cURus): 22 AWG
• Conductor size Field wiring min.(cURus): 22 AWG
• Current size C(cURus): 36 A
• Voltage size C (cURus): 150 V
• Conductor size Factory wiring max.(cURus): 8 AWG
• Conductor size Field wiring max. (cURus): 8 AWG
• Current size B(cURus): 36 A
• Voltage size B(cURus): 150 V
• ETIM 6.0: EC000897
• eClass 9.1: 27-14-11-20
• eClass 6.2: 27-14-11-20
