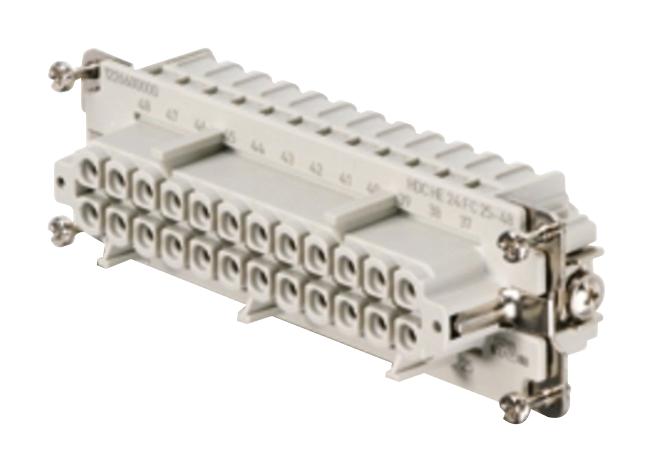

Weidmuller HDCHE24FC2548 Electrical Connector Insert
The HDC HE 24 FC 25-48 is a reliable female insert designed for industrial electrical connections requiring crimp contact technology. With a total length of 111mm, width of 34mm, and height of 33.5mm, it supports a rated voltage of 500 V and current of 16 A. Made from copper alloy with a silver passivated surface finish, it features 24 poles, a crimp connection type, and a maximum conductor cross-section of 4mm². Suitable for environments with pollution severity level 3, it ensures durable and secure connections in control and automation systems.
Weidmuller HDCHE24FC2548 Electrical Connector Insert Specifications:
- Length: 111mm (4.37 inches)
- Width: 34mm (1.339 inches)
- Height: 33.5mm (1.319 inches)
- Rated voltage: 500 V
- Rated current: 16 A
- Number of poles: 24
- Connection type: Crimp connection
- Conductor cross-section: 4mm² max, 0.5mm² min
- Material: Copper alloy
- Surface finish: Silver passivated, gold plated
- Insulating material: PC glass-fibre reinforced
- Temperature range: 40°C to 125°C
- Pollution severity: Level 3
- Plugging cycles: 2500 (gold and silver)
- Dimensions: Length 111mm, width 34mm, height 33.5mm
- Bulk weight: 689g
Buy the Weidmueller HDCHE24FC2548 – Reliable Crimp Connector for Industrial Applications
Secure your industrial electrical connections with the Weidmueller HDCHE24FC2548 insert. Designed for durability and ease of installation, it offers 24 poles, a maximum conductor cross-section of 4mm², and a rated voltage of 500 V at 16 A. Made from copper alloy with a silver passivated surface, it ensures reliable performance in automation, control panels, and machinery. Order online today and enhance your system's safety, efficiency, and longevity with this trusted crimp connection component.
Buy Weidmueller HDCHE24FC2548 now and experience unmatched reliability and performance in industrial control systems with durable crimp contacts.
Frequently Asked Questions
Where can I buy Weidmuller HDCHE24FC2548?
You can click on the BUY or RFQ button to purchase HDCHE24FC2548 from an authorized Weidmuller distributor.
How do I troubleshoot issues or seek technical support for part HDCHE24FC2548?
You can download the HDCHE24FC2548 datasheet or visit the Weidmuller website for support.
Who is the manufacturer of HDCHE24FC2548?
Weidmuller
