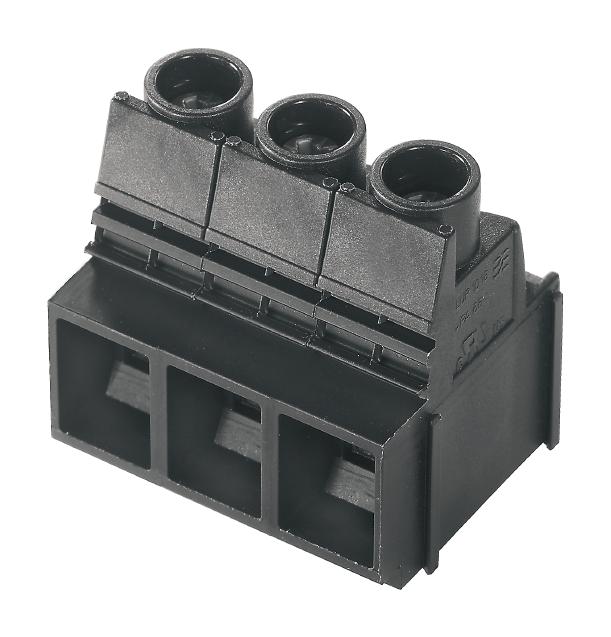

WEIDMULLER 2012810000 PCB Terminal
The PCB terminal features proven clamping yoke connection with 10.16 mm pitch and 90° conductor outlet, rated for 1000 V and 76 A. It supports solder pins of 5 mm length, with a maximum clamping range of 16 mm² for wire cross-sections from AWG 22 to AWG 6. Designed for reliable PCB mounting via THT soldering, it provides test points, tinned contact surfaces, and a black Insulating material (RAL 9011) with UL V0 flammability rating. Suitable for demanding electrical assemblies requiring durability and secure connections.
WEIDMULLER 2012810000 PCB Terminal Specifications:
- Pitch: 10.16 mm (0.4 inch)
- Number of poles: 2
- Conductor outlet: 90°
- Solder pin length: 5 mm
- Max. clamping range: 16 mm²
- Rated voltage: 1000 V (IEC), 600 V (UL/CSA)
- Rated current: 76 A (IEC), 51 A (UL/CSA)
- Wire cross-section: AWG 22- AWG 6 (min. 0.13 mm² to max. 16 mm²)
- Solder pin dimensions: 12 x 1.2 mm
- Solder eyelet hole diameter: 1.6 mm
- Material: Wemid (PA), black, UL V0 flammability rating
- Contact material: Tinned copper
- Operating temperature: -50°C to 120°C
- Storage temperature: -40°C to 70°C
- Dimensions: Width 21.12 mm, Height 36.5 mm, Depth 25.1 mm
- Net weight: 18.42 g
- Touch-safe protection: IP20 plugged, IP10 unplugged
- Rated impulse voltage: 6 kV (IEC), 800 V (UL)
- Short-time withstand current: 700 A for 1s
Buy the Weidmueller Series LUP PCB Terminal: 2012810000
Purchase the Weidmueller Series LUP PCB terminal online for durable, reliable PCB connections. Its proven clamping yoke design provides secure contact for wire cross-sections from AWG 22 to AWG 6. Rated at 1000 V and 76 A, it features a 10.16 mm pitch with 90° conductor outlet, suitable for demanding electrical assemblies. Easily mountable via THT soldering, the black Wemid material ensures safety and flame retardance. Ideal for industrial applications requiring long-term stability and efficient wiring.
Get Weidmueller series LUP PCB terminal today—built for precision and long-lasting durability.
