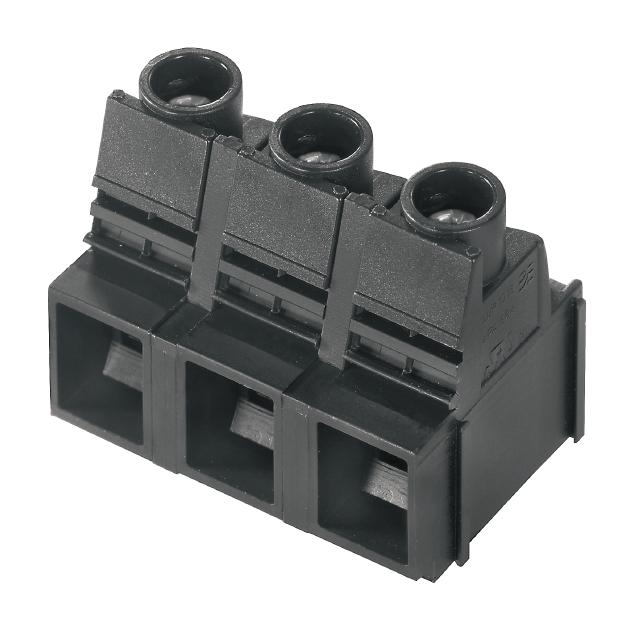

WEIDMULLER 2014380000 Power Terminal Block
The PCB terminal provides reliable connections for 1000 V, 76 A, and 16 mm² conductor cross-section with proven clamping yoke technology at a 12.7 mm pitch, suitable for industrial power and automation applications. Its compact black design features a 3-pole configuration, solder pins measuring 5 mm in length, and a 90° outlet direction, ensuring high-performance, safe, and efficient electrical connections in complex systems. The terminal is UL, IEC, and CSA rated, conforming to international standards for durability and safety.
WEIDMULLER 2014380000 Power Terminal Block Specifications:
- Number of poles: 3
- Pitch: 12.7 mm (0.5 inch)
- Max. clamping range: 16 mm²
- Solder pin length: 5 mm
- Conductor cross-section: 0.5-16 mm²
- Rated voltage: 1000 V (IEC), 600 V (UL)
- Rated current: 76 A (IEC), 65 A (UL)
- Solder eyelet hole diameter: 1.6 mm
- Material: Wemid (PA), black, UL V0 rated
- Contact material: Copper, tinned
- Dimensions: Width 36.36 mm, Height 36.5 mm, Depth 25.1 mm
- Temperature range: -50°C to +120°C
- Insulation: Insulating material group I, CTI 2600
- Clamping method: Yoke connection
- Mounting: THT solder connection
- Certifications: UL, IEC, CSA, RoHS
Buy the Weidmueller LUP 12.70/03/90 5.0SN BK BX – Reliable PCB Power Terminal for Industrial Applications
Upgrade your electrical system with the Weidmueller Power Terminal Block, designed for high current capacity and safe power distribution. Featuring a robust 3-pole configuration, 12.7 mm pitch, UL, IEC, and CSA certifications, and proven clamping yoke technology, this terminal offers durability, easy installation, and reliable connections for industrial power and automation applications. Its compact size, high-quality materials, and wide clamping range of up to 16 mm² ensure versatile and efficient performance, making it the ideal choice for demanding electrical projects.
Order your Weidmueller Series LUP 12.70/03/90 5.0SN BK BX today and give your projects the dependable quality they deserve with superior power connection reliability.
