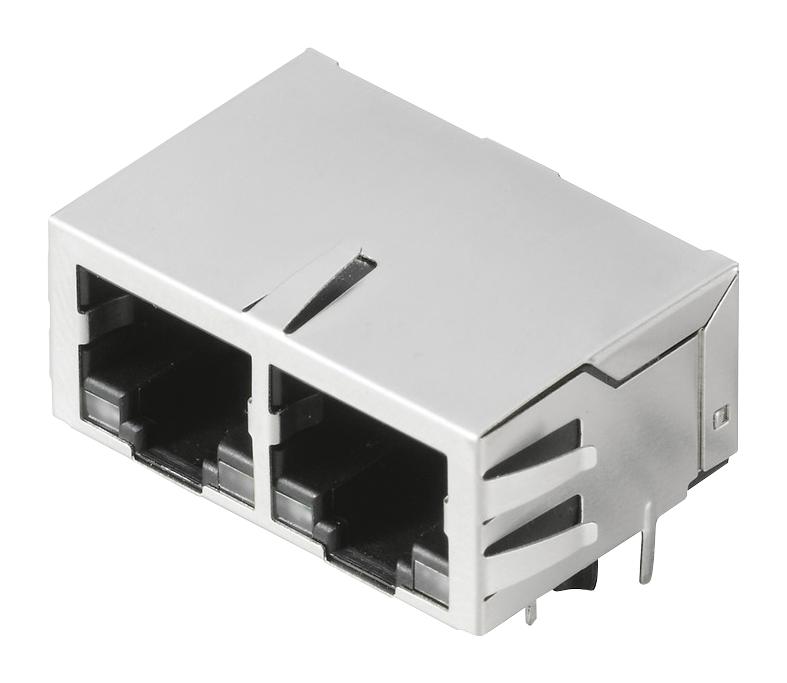

WEIDMULLER 2036510000 RJ45 jacks transformer
The WEIDMULLER RJ45G1 R12D 3.3EY4G/YG RL is a PCB plug-in connector transformer specifically engineered for gigabit Ethernet applications (1000 base-T). It actively counteracts inductive and capacitive couplings, saving valuable PCB space. The connector supports both THT and THR soldering processes, offers a wide operating temperature range (-40°C to +85°C), and incorporates a reinforced gold layer for enhanced corrosion resistance. It is suitable for industrial automation, networking equipment, and other applications requiring reliable high-speed data transmission. The connector is packaged on a roll (tape-on-reel) for automated assembly processes.
WEIDMULLER 2036510000 RJ45 jacks transformer Specifications:
- Type: RJ45G1 R12D 3.3EY4G/YG RL
- Order No.: 2036510000
- Version: PCB plug-in connector, RJ45 jacks transformer
- GTIN(EAN): 4050118408409
- Qty.: 90pc(s).
- Packaging: Tape (Ø 330 mm); Rs = 109- 1012Ω
- Net weight: 100 g
- Operating temperature, max: 85 °C
- Operating temperature, min: -40 °C
- Storage temperature, max: 85 °C
- Storage temperature, min: -40 °C
- LED: Yes
- No. of poles: 8
- Outgoing elbow: 90°
- Pitch in inches: 0.05 inch
- Plugging cycles: 750
- Protection degree: IP20
- Shield tabs: 6 tabs
- Shielding material: Brass
- Solder eyelet hole diameter tolerance (D): ± 0.1 mm
- Solder pin length (l): 3.2 mm
- Transmission rate: 1000 MBit/s
- Wiring: 10-wire
- Mounting: THT/THR solder connection
- Number of solder pins per pole: 1
- Product family: OMNIMATE Data - RJ45 jacks transformer
- Shield surface: nickel-plated
- Shielding: Yes
- Solder eyelet hole diameter (D): 0.9 mm
- Solder pin dimensions: 0.40 x 0.30 mm, LED pins = 0.50 x 0.50 mm
- Tack option: bottom
- Type of connection: Socket
- Dielectric strength, contact/contact: ≥ 1000 V DC
- Rated current: 1.5 A
- Insulation resistance: > 500 MΩ
- Rated voltage: 125 V AC
- Insulating material: PA 9T
- Colour: Black
- Insulating material group: II
- UL 94 flammability rating: V-0
- Contact base material: Phosphorus bronze
- Layer structure of plug contact: 30-80µ" Ni/30-µ" Au
