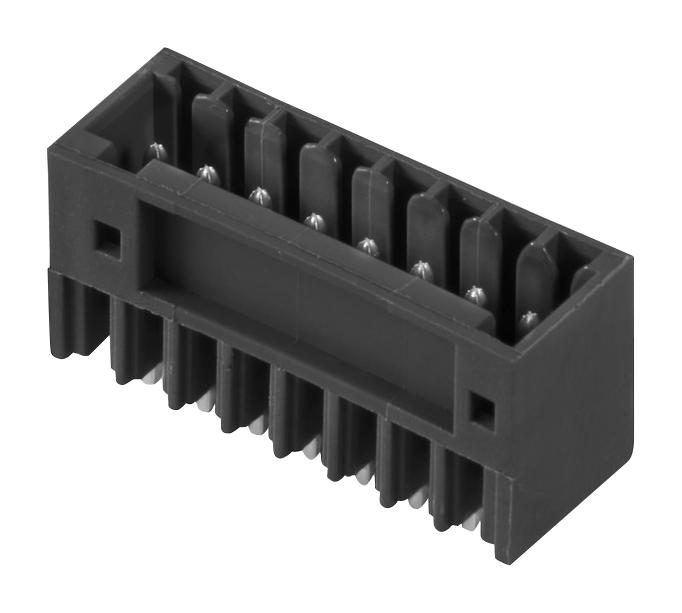

WEIDMULLER 2439920000 Male Header Connector
This male header connector features a 2.50 mm pitch, designed for wave soldering applications. It offers a straight (180°) plugging direction onto PCBs with a closed housing variant, packaged in a box for convenience. The connector supports THT solder connection, with three poles, and a solder pin length of 3.2 mm. Made of high-quality materials, it has a robust copper alloy contact surface, tin-plated for durability, and insulation from PA 66 in black. Suitable for industrial and electronic applications requiring reliable, standardized PCB connections with a rated voltage of 320V and current of 6A.
WEIDMULLER 2439920000 Male Header Connector Specifications:
- Pitch: 2.50 mm (0.984 inch)
- Poles: 3
- Solder pin length: 3.2 mm (+0.17 / -0.1 mm)
- Solder pin dimensions: 0.8 x 0.8 mm
- Solder eyelet hole diameter: 1.3 mm (+0.1 mm)
- Material: PA 66 black insulation, copper alloy contact
- Tin-plated contact surface, matt finish
- Operating temperature: -40°C to +105°C
- Rated voltage: 320V
- Rated current: 6A
- Flammability rating: UL 94 V-0
- Plugging cycles: 25
- Protection level: IP00
- Width: 9.4 mm (0.37 inch)
- Height: 13.3 mm (0.524 inch)
- Depth: 8.1 mm (0.319 inch)
- Net weight: approximately 19 grams
Buy the Buy Weidmuller Male Header Connector Part Number 2439920000 Online
Purchase the Weidmuller Male Header Connector with 2.50 mm pitch, 3 poles, and THT soldering design from our online store. Engineered for precision PCB assembly, this connector features a robust copper alloy contact surface, tin-plated for durability, and an insulating black PA66 housing. It supports a rated voltage of 320V and current of 6A, making it ideal for industrial and electronic applications. Fast, secure online ordering ensures you receive high-quality components for reliable circuit connectivity and long-lasting performance.
Get Weidmuller 2439920000 today—reliable PCB connection, suitable for wave soldering with durable tin-plated contacts and a compact design.
Frequently Asked Questions
Where can I buy WEIDMULLER 2439920000?
You can click on the BUY or RFQ button to purchase 2439920000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2439920000?
You can download the 2439920000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2439920000?
WEIDMULLER
