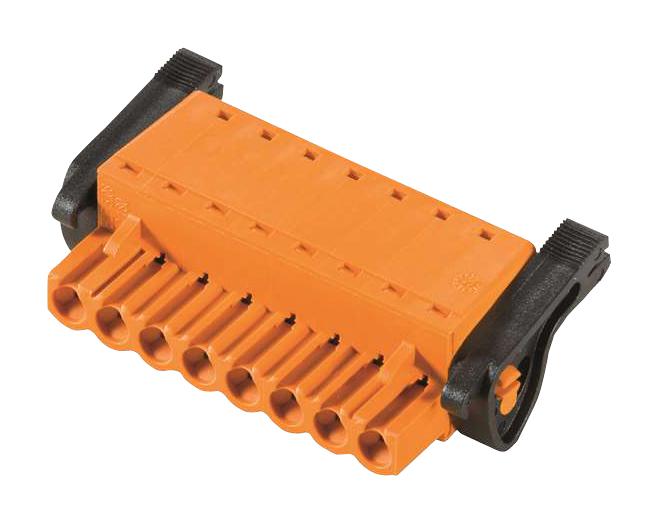

WEIDMULLER 1014440000 Push-in Connector
The OMNIMATE Signal series BL/SL 5.08 features the BLF 5.08HC/08/180LR push-in female connector, offering reliable, tool-free wire connection with innovative push-in spring technology. Designed for versatile applications, it supports 8 poles with a pitch of 5.08 mm, rated for 24 A at 400 V, and accommodates a wide range of conductor sizes from 0.13 mm² to 3.31 mm². With several flange options, tested connection directions, and high current capacity, it ensures easy installation, secure locking, and compliance with international standards, making it suitable for automation and control panels.
WEIDMULLER 1014440000 Push-in Connector Specifications:
- Type of connection: PUSH IN
- Pitch: 5.08 mm (0.2 inch)
- Number of poles: 8
- Conductor outlet direction: 180°
- Rated voltage: 400 V (IEC), 300 V (UL/CSA)
- Rated current: 24 A (IEC), 18.5 A (UL/CSA)
- Wire cross-section: 0.13 mm² to 3.31 mm² (AWG 26 to AWG 12)
- Insulating material: PBT, Orange, RAL 2000
- Touch-safe protection: IP 20
- Flammability rating: UL 94 V0
- Contact material: CuSn, tinned
- Max. operating temperature: 100°C
- Min. storage temperature: -25°C
- Min. operating temperature: -60°C
- Push-in connection force: 10N per pole
- Withdrawal force: 8N per pole
- Plugging cycles: 25
- Certifications: UL, CSA, IEC standards
Buy the Buy Weidmuller BLF 5.08HC/08/180LR Part Number 1014440000 Online
Enhance your automation and control panel wiring with the reliable Weidmuller push-in connector, featuring easy tool-free wire insertion, secure locking, and high current capacity. The 8-pole design with 5.08 mm pitch supports various conductor sizes from 0.13 mm² to 3.31 mm², ensuring versatile usage. Its IP 20 protection, UL and CSA certifications, and temperature tolerance up to 100°C make it an ideal choice for industrial applications. Effortlessly install, connect, and maintain your control systems with this advanced connector available for online purchase.
Buy Weidmuller BLF 5.08HC/08/180LR now and experience unmatched reliability and tool-free, high-current wire connections for your automation projects.
Frequently Asked Questions
Where can I buy WEIDMULLER 1014440000?
You can click on the BUY or RFQ button to purchase 1014440000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 1014440000?
You can download the 1014440000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 1014440000?
WEIDMULLER
