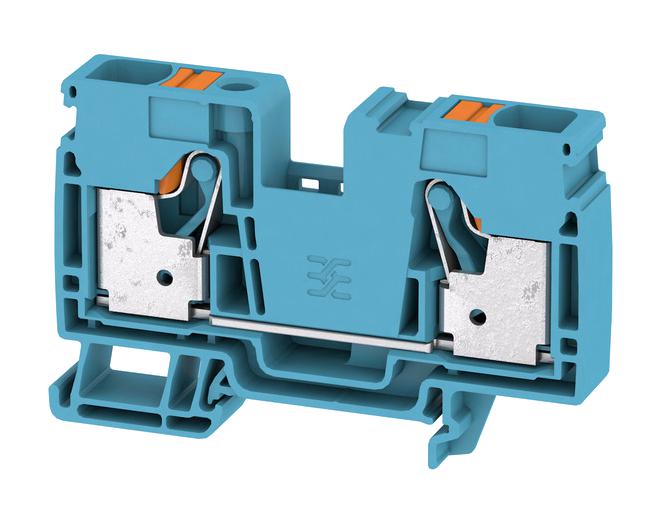

WEIDMULLER 2494100000 Feed-through Terminal Block

WEIDMULLER 2494100000 Feed-through Terminal Block Specifications:

• Type: Feed-through terminal
• Order No.: 2494100000
• Version: Feed-through terminal, PUSH IN, 16 mm², 1000 V, 76 A, blue
• GTIN(EAN): 4050118504101
• Quantity: 20 pc(s).
• Width: 12 mm
• Height: 80.5 mm
• Depth: 51.5 mm
• Depth including DIN rail: 52.5 mm
• Width(inches): 0.472 inch
• Height(inches): 3.169 inch
• Depth(inches): 2.028 inch
• Net weight: 35.955 g
• Storage temperature,max.: 40 °C
• Storage temperature: 10 °C...40 °C
• Continuous operating temp., max.: 130 °C
• Storage temperature,min.: 10 °C
• Continuous operatingtemp.,min.: -60 °C
• Material: Wemid
• Colour of operational elements: orange
• Colour: blue
• UL 94 flammability rating: V-0
• Certificate No.(ATEX): TUEV16ATEX7909U
• Max. voltage(ATEX): 550 V
• Wire cross section max.(ATEX): 16 mm²
• Current (IECEX): 64 A
• Certificate No.(IECEX): IECEXTUR16.0036U
• Current(ATEX): 64 A
• Max. voltage(IECEX): 550 V
• Wire cross section max. (IECEX): 16 mm²
• Number of levels: 1
• Number of potentials per tier: 1
• Number of potentials: 1
• Number of clamping pointsper level: 2
• Rail: TS 35
• Installation advice: Rail, Snap-on
• Type of mounting: TS 35
• Open sides: right
• Type of fixing: Snap-on
• With snap-in pegs: No
• Certificate No.(CSA): 200039-70089609
• Current size C(CSA): 62 A
• Voltage size B(CSA): 600 V
• Voltage size D(CSA): 600 V
• Wire cross section min. (CSA): 18 AWG
• Current size B(CSA): 62 A
• Current size D(CSA): 5 A
• Voltage size C(CSA): 600 V
• Wire cross section max.(CSA): 6 AWG
• Blade size: 1.0 x 5.5 mm
• Clamping range, min.: 0.5 mm²
• Connection cross-section,stranded,min.: 0.5 mm²
• Gauge to IEC 60947-1: A6
• Strippinglength: 18 mm
• Twin wire-end ferrules,min.: 0.75 mm²
• Wire connection cross section AWG,max.: AWG 4
• Wire connection cross-section, finely stranded, max.: 16 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,min.: 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,min.: 0.5 mm²
• Wire connection cross-section, solid core, max.: 16 mm²
• Clampingrange,max.: 16 mm²
• Connection cross-section, stranded,max.: 16 mm²
• Connection direction: top
• Number of connections: 2
• Twin wire-end ferrules,max.: 6 mm²
• Type of connection: PUSH IN
• Wire connection cross section AWG,min.: AWG 18
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1,max.: 16 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4,max.: 16 mm²
• Wire connection cross-section, finely stranded, min.: 0.5 mm²
• Wire connection cross-section, solid core, min.: 0.5 mm²
• Rated cross-section: 16 mm²
• Rated current: 76 A
• Standards: IEC 60947-7-1
• Power loss in accordance with IEC 60947-7-x: 2.43 W
• Pollution severity: 3
• Rated voltage: 1,000 V
• Current at maximum wires: 76 A
• Volume resistance according to IEC 60947-7-x: 0.42 mΩ
• Rated impulse withstand voltage: 8 kV
• Surge voltage category: III
• Certificate No. (cURus): E60693
• Conductor size Factory wiring min.(cURus): 18 AWG
• Conductor size Field wiringmin.(cURus): 18 AWG
• Current size C(cURus): 62 A
• Voltage size B(cURus): 600 V
• Voltage size D (cURus): 600 V
• Conductor size Factory wiring max.(cURus): 6 AWG
• Conductor size Field wiring max. (cURus): 6 AWG
• Current size B(cURus): 62 A
• Current size D(cURus): 5 A
• Voltage size C(cURus): 600 V
• ETIM 6.0: EC000897
• eClass 9.0: 27-14-11-20
• eClass 10.0: 27-14-11-20
• ETIM 7.0: EC000897
• eClass 9.1: 27-14-11-20
