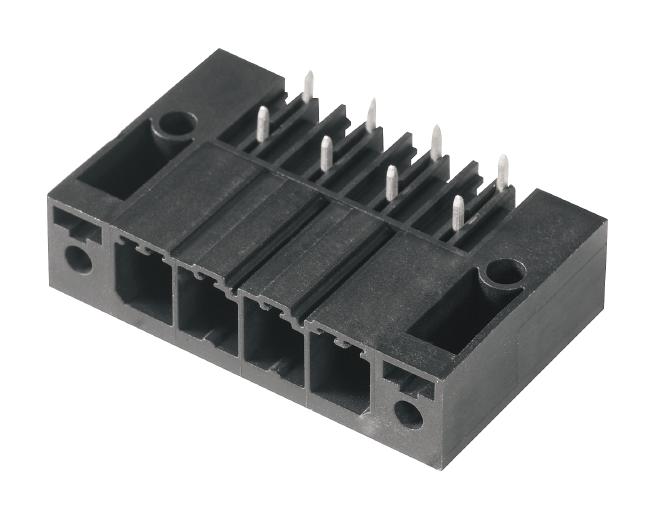

WEIDMULLER 2499940000 Power Connector

WEIDMULLER 2499940000 Power Connector Specifications:

• Type: SV-SMT 7.62HP/02/270SF 2.6SN BK BX
• Order No.: 2499940000
• Version: PCB plug-in connector, male header, Screw flange
• GTIN(EAN): 4050118513363
• Qty.: 60pc(s).
• Product data: IEC: 1000 V / 41 A, UL: 300 V/40.5 A
• Packaging: Box
• Height of lowest version: 11.4 mm
• Depth (inches): 1.114 inch
• Depth: 28.3 mm
• Net weight: 4.4 g
• Product family: OMNIMATE Power - series BV/SV 7.62HP
• Pitch in inches(P): 0.3 inch
• Number of poles: 2
• Solderpin length(l): 2.6 mm
• Tolerance of solderpinposition: ± 0.1 mm
• Solder eyelet hole diameter(D): 1.4 mm
• L1 in mm: 7.62 mm
• Number of rows: 1
• Touch-safe protection: safe to back of hand
• Volume resistance: 2.00 mΩ
• Tighteningtorque for screw flange,max.: 0.3 Nm
• Plugging force/pole, max.: 12 N
• Type of connection: Board connection
• Pitch in mm (P): 7.62 mm
• Outgoing elbow: 270°
• Number of solderpinsperpole: 2
• Solderpin length tolerance: +0.1/-0.3 mm
• Solderpin dimensions: 0.8 x 1.0 mm
• Solder eyelet hole diameter tolerance(D): + 0,1 mm
• L1 in inches: 0.3 inch
• Pin seriesquantity: 1
• Insulatingmaterial: PA GF HT3
• Colour chart(similar): RAL 9011
• Comparative Tracking Index (CTI): ≥ 600
• Moisture Level(MSL): 3
• Contact material: Copper alloy
• Layer structure of solder connection: 1...3 µm Ni / 4...6 µm Sn
• Storage temperature,min.: -40 °C
• Operatingtemperature,min.: -50 °C
• Temperature range, installation, min.: -25 °C
• Colour: black
• Insulatingmaterialgroup: I
• Insulation strength: ≥ 108Ω
• UL 94 flammabilityrating: V-0
• Contact surface: tinned
• Layer structure of plug contact: 1...3 µm Ni / 4...6 µm Sn
• Storage temperature,max.: 70 °C
• Operatingtemperature,max.: 130 °C
• Temperature range, installation, max.: 130 °C
• Rated current, max. number of poles (Tu=20°C): 41 A
• Rated current, max. number of poles (Tu=40°C): 41 A
• Rated voltage for surge voltage class / pollution degree III/2: 630 V
• Rated impulse voltage for surge voltage class/ pollution degree II/2: 6 kV
• Rated impulse voltage for surge voltage class/contamination degree III/3: 6 kV
• Clearance, min.: 6.9 mm
• Rated current, min. number of poles (Tu=20°C): 41 A
• Rated current, min. number of poles (Tu=40°C): 41 A
• Rated voltage for surge voltage class / pollution degree II/2: 1,000 V
• Rated voltage for surge voltage class / pollution degree III/3: 630 V
• Rated impulse voltage for surge voltage class/ pollution degree III/2: 6 kV
• Short-time withstand current resistance: 3 x 1s with 420 A
• Creepage distance, min.: 9.6 mm
• Institute (cURus): Rated voltage(UsegroupB/UL 1059) 300 V
• Rated voltage(UsegroupD/UL 1059): 300 V
• Rated current(UsegroupC/UL 1059): 40.5 A
• Certificate No. (cURus): E60693
• ROHS: Conform
