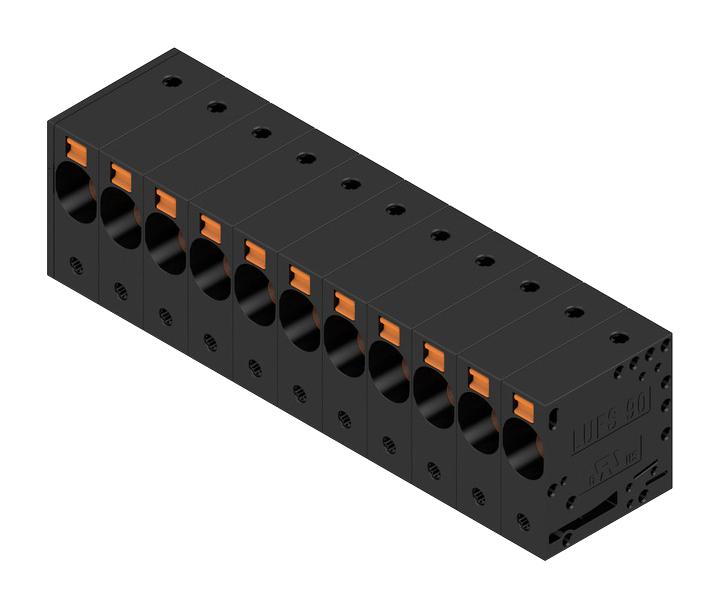

WEIDMULLER 2500540000 PCB Terminal
The LUFS 10.00/11/90V 5.0SN BK BX is a high-performance PCB terminal featuring PUSH IN connection system for conductor cross-sections up to 16 mm². It allows quick tool-free connection via pushers or direct plug-in, ensuring a secure contact with the 'Connection Safety Concept.' It includes an integrated test point for PS 2.0 test plugs and a central tip test point for upper-side test probes. Made from WEMID insulating material, it offers increased derating reserves. Suitable for PCB mounting with a push-in method and 180° conductor outlet, ideal for industrial power distribution applications.
WEIDMULLER 2500540000 PCB Terminal Specifications:
- Dimensions: Width 111.8 mm, Height 35 mm, Depth 28.55 mm, Solder pin length 5 mm
- Material: Insulating material Wemid (PA), Contact base material ECu
- Rated voltage IEC: 1000 V, UL: 600 V, Rated current IEC: 76A, UL: 53A
- Clamping Range: Min 0.5 mm, Max 16 mm
- Wire cross-section AWG: Min AWG 18, Max AWG 4
- Solder eyelet hole diameter: 1.6 mm, Solder pin dimensions: d= 1.2 mm, Octagonal
- Operating Temperature: Min -40°C, Max 120°C; Storage Temperature: Min -40°C, Max 70°C
- Insulation: IP20 when plugged, IP10 when unplugged, Flammability rating: V0
- Certifications: IEC, UL, RoHS, Conforms to IPC standards
Buy the Buy Weidmuller PCB Terminal Part Number 2500540000 Online
Order the Weidmuller PCB terminal part number 2500540000 online today for a reliable connection solution designed for industrial applications. Featuring PUSH IN technology for tool-free wiring, secure contact with high rated voltage and current, integrated test points, and a robust construction from high-quality insulating material, this terminal ensures durable and safe power distribution. Its compact dimensions and up to 16 mm² conductor capacity make it ideal for automation and control systems. Purchase now for quick delivery and expert support.
Get Weidmuller 2500540000 today—built for secure connections, high reliability, and industrial power distribution efficiency.
Frequently Asked Questions
Where can I buy WEIDMULLER 2500540000?
You can click on the BUY or RFQ button to purchase 2500540000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2500540000?
You can download the 2500540000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2500540000?
WEIDMULLER
