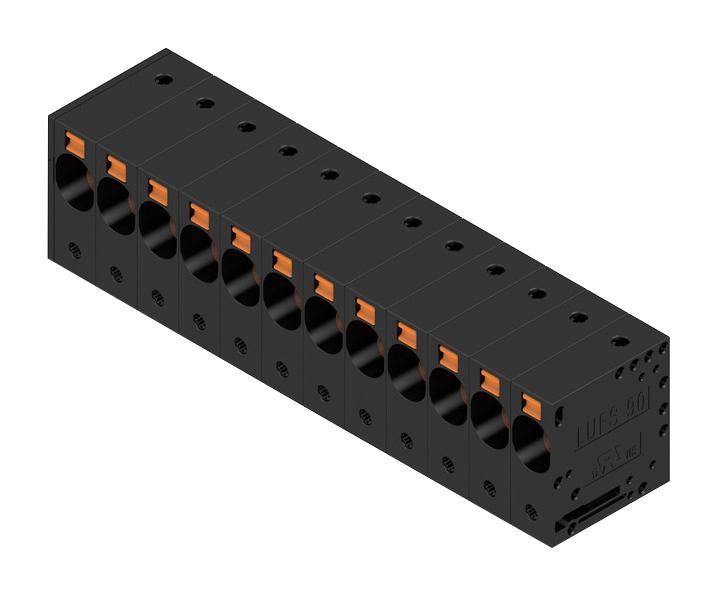

WEIDMULLER 2500550000 Industrial PCB Terminal
The PCB terminal from the OMNIMATE Power series LU is a high-performance, push-in connection system supporting conductor cross-sections up to 16 mm². Designed for quick, tool-free connection, it features secure contact points with a safety concept ensuring reliable clamp connections, and an integrated test point for easy testing. Suitable for PCB mounting with 12 poles at 90°, it offers durable insulative materials, a robust construction, and broad application in industrial electronics and automation systems. The terminal provides efficient, reliable electrical connections with enhanced derating reserves for safety and longevity.
WEIDMULLER 2500550000 Industrial PCB Terminal Specifications:
- Type: LUFS 10.00/12/90V 5.0SN BK BX
- Number of poles: 12, 90° pitch: 10 mm
- Connection method: PUSH IN without actuator
- Max. conductor cross-section: 16 mm²
- Solder pin length: 5 mm, dimensions: d= 1.2 mm, octagonal
- Solder eyelet hole diameter: 1.6 mm
- Material: Insulating Wemid (PA), operational parts: PAAT GF
- Color: Black with orange operational elements
- Dimensions: Width 121.8 mm, height 35 mm, depth 28.55 mm
- Rated voltage (IEC/UL): 1000 V / 600 V, Rated current: 53A / 6A
- Operating temperature: -40°C to 120°C
- Clamping range: 0.5 mm to 16 mm
- Wire compatibility: AWG 18 to AWG 4, solid, stranded, flexible
- Conformity: RoHS, flame rating V0, UL, CSA approved
- Test points: Integrated for easy testing, system suitable for industrial applications
Buy the Weidmueller LUFS 10.00/12/90V 5.0SN – Reliable PCB Terminal for Industrial Applications
Purchase the Weidmueller LUFS 10.00/12/90V 5.0SN PCB terminal today for secure, tool-free connections supporting conductors up to 16 mm². Its robust construction, integrated test points, and high voltage/current ratings make it ideal for industrial automation, power management, and control systems. With quick push-in connection technology, it enhances efficiency and safety in electrical and electronic assemblies. Designed for durable performance, it ensures reliable operation in demanding environments, making it a trusted choice for professionals seeking quality and ease of installation.
Get Weidmueller LUFS 10.00/12/90V 5.0SN today—built for precision, quick connection, and long-lasting durability in industrial electronics.
