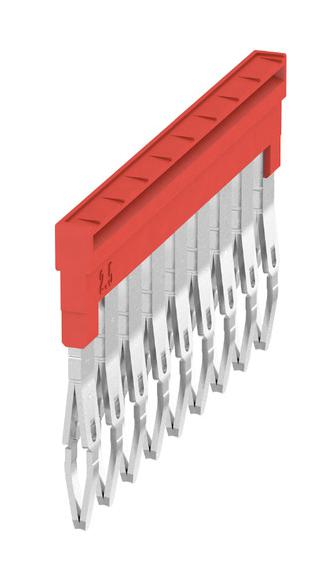

WEIDMULLER 2108900000 Spring Connection Terminal Block
The Weidmuller A-series ZQV 2.5N/9 RD terminal block features innovative PUSH IN technology, significantly reducing wiring time. This design guarantees high conductor pull-out forces and simplifies handling for all conductor types. Constructed from Wemid with a V-0 flammability rating, it offers robust performance and safety. Suitable for direct mounting and plugged fixing, this terminal block is ideal for various industrial applications where efficient and reliable connections are crucial. Note that breaking out more than 60% of contact elements may impact stability and temperature, and cross connectors reduce rated voltage.
WEIDMULLER 2108900000 Spring Connection Terminal Block Specifications:
- Width: 43.6 mm
- Height: 24.7 mm
- Depth: 2.8 mm
- Net weight: 5.24 g
- Width(inches): 1.717 inch
- Height(inches): 0.972 inch
- Depth(inches): 0.11 inch
- Storage temperature max: 55 °C
- Storage temperature min: -25 °C
- Material: Wemid
- UL 94 flammability rating: V-0
- Colour: red
- Explosion-tested version: Yes
- Type of mounting: Direct mounting
- Type of fixing: Plugged
- Pitch in mm (P): 5.1 mm
- Rated current: 24 A
- ETIM 6.0: EC000489
- eClass 9.0: 27-14-11-40
- eClass 10.0: 27-14-11-40
- ETIM 7.0: EC000489
- eClass 9.1: 27-14-11-40
- Product information: Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used
Buy the 2108900000 WEIDMULLER Spring Connection Terminal Block | myMectronic
Purchase the Weidmuller 2108900000 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 2108900000?
You can click on the BUY or RFQ button to purchase 2108900000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2108900000?
You can download the 2108900000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2108900000?
WEIDMULLER
