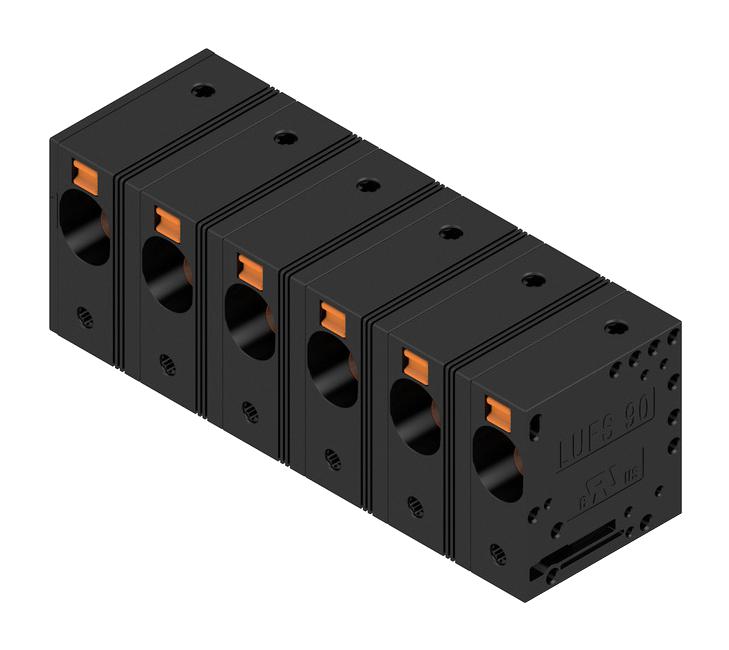

WEIDMULLER 2500660000 Power Terminal Block
The LU series power terminal block is designed for high-current and high-voltage power electronics applications such as solar inverters, frequency converters, and power supplies. It features a sturdy, direct push-in connection method without actuator, six poles at a 90° outlet direction, and is suitable for PCB mounting with THT soldering. Made of insulative Wemid (PA) with copper contact material, it supports wire cross-sections from AWG 18 to AWG 4, with a clamping range of 0.5 mm to 16 mm. It complies with IEC, UL, and CSA ratings up to 1,000 V and 53 A, ensuring reliable performance in demanding environments.
WEIDMULLER 2500660000 Power Terminal Block Specifications:
- Dimensions: Width 86.8 mm, Height 35 mm, Depth 28.55 mm
- Material: Insulating Wemid (PA), contact material Copper (ECu)
- Electrical Ratings: IEC 1000 V/76 A, UL 600 V/53 A, CSA 600V/53 A
- Number of Poles: 6 with 15 mm pitch, 90° outlet
- Solder pin length: 5 mm, dimensions d= 1.2 mm, octagonal
- Clamping Range: 0.5 mm to 16 mm, compatible with AWG 18 to AWG 4
- Operating Temperature: -40°C to +120°C, Storage: -40°C to +70°C
- Insulation: Flammability rating V0 (UL 94), CTI > 600
- Certification: IEC, UL, CSA certified, compliant with IPC and eClass standards
- Connection Method: Push-in with THT soldering, conductor outlet at 90°
- Wire End Ferrules: Compatible with DIN 46228 standards, stripping length 18-20 mm
- Packaging: Box of 10 units, compact design for power electronics integration
Buy the Buy Weidmuller LUFS 15.00/06/90V 5.0SN BK BX Part Number 2500660000 Online
Purchase the Weidmuller Power Terminal Block from the LU series online today to ensure robust, high-current connections for your power electronics projects. Designed with a push-in connection method, six poles, and a compact PCB mount, it offers rated voltages up to 1000 V and currents up to 53 A, making it ideal for demanding industrial and solar inverter applications. Its durable insulative material and compliance with IEC, UL, and CSA standards guarantee safety, reliability, and top performance in all power distribution setups.
Buy Weidmuller LUFS 15.00/06/90V 5.0SN BK BX now and experience unmatched reliability and performance in high-current power connections.
