WEIDMULLER 2583510000 Sealing Grommet

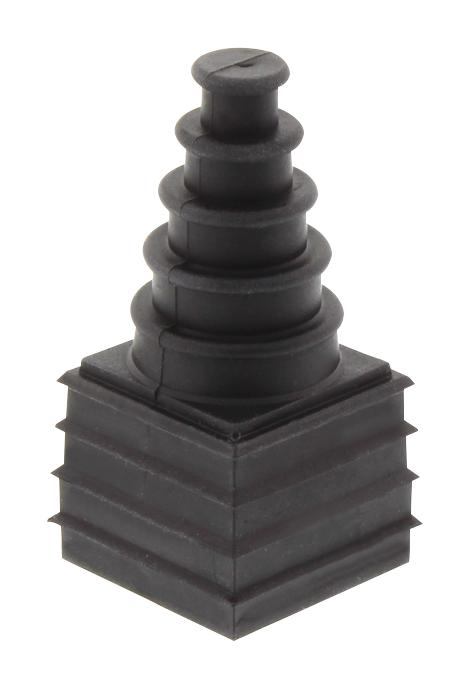

This cone-shaped sealing grommet is ideal for applications where the cable diameter is not precisely known. It can be easily installed by pressing it into place from inside the frame inlay. The flexible, non-split design allows customization to fit various cable sizes by trimming with a knife or scissors to create an opening. When used together with a frame inlay, it provides an IP66 degree of protection. Made from black TPE, it is halogen-free, silicone-free, and UV stabilized. The grommet accommodates a clamping range of 2mm to 11mm and has a flammability rating of UL94 HB. Its static temperature range is from -40°C to +120°C.
WEIDMULLER 2583510000 Sealing Grommet Specifications:
- Material: TPE, halogen-free, silicone-free, UV stabilized
- Color: Black RAL 9005
- Clamping Range: 2mm to 11mm
- Flammability: UL94 HB
- Temperature Range: -40°C to +120°C
- Degree of Protection: IP66
- Sealing Type: Cone shape, non-split, customizable by trimming
- Application: Suitable for various cable diameters, provides strain relief and seal
- Dimensions: Accommodates cables from 2mm to 11mm in diameter
Buy the Buy Weidmuller Cone-Shaped Sealing Grommet Part Number 2583510000 Online
Order the Weidmuller sealing grommet online today and ensure your control cabinets and enclosures are sealed IP66. Crafted from durable, halogen-free TPE, this adaptable cone-shaped gasket fits cables from 2 to 11mm in diameter, providing secure strain relief and reliable protection against dust, water, and other environmental factors. Its flexible design allows easy installation by pressing into place, while its UL94 HB flammability rating and operation temperature from -40°C to +120°C make it suitable for a wide range of industrial environments. Ensure your cable management system remains secure and efficient by purchasing online now.
Buy Weidmuller Part Number 2583510000 now and experience reliable sealing, flexibility, and excellent protection for your cables.
Frequently Asked Questions
Where can I buy WEIDMULLER 2583510000?
You can click on the BUY or RFQ button to purchase 2583510000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2583510000?
You can download the 2583510000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2583510000?
WEIDMULLER
