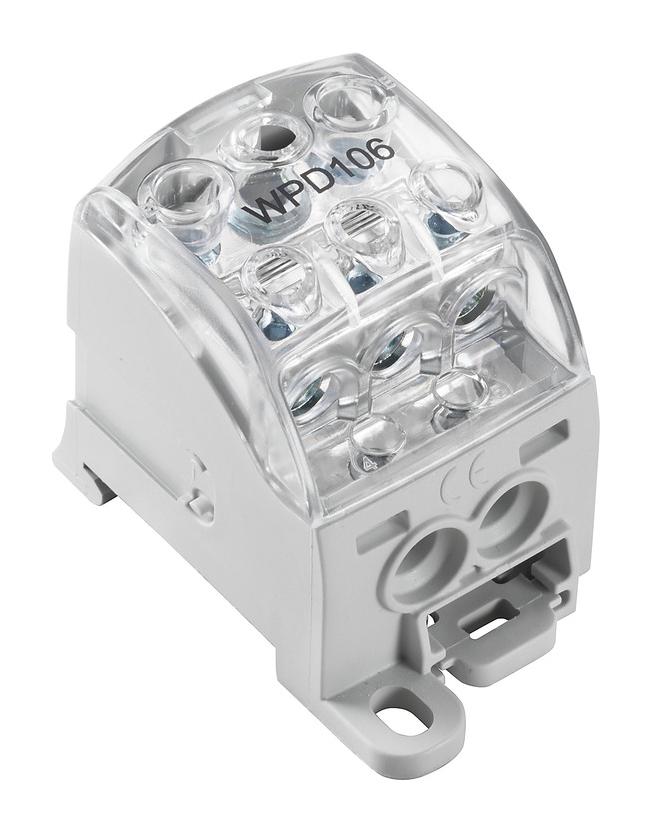

WEIDMULLER 1562210000 Power Distribution Terminal Block
The WPD 106 1X70/2X25+3X16 GY is a high-quality power distribution terminal block designed for secure and efficient distribution of electrical currents in industrial applications. It features screw connections, robust construction with light grey Wemid material, and complies with UL 94V-0 flammability standards. Rated for 1000V AC/DC and 192A, it supports a maximum wire cross-section of 50 mm². Its compact dimensions of 39.5 mm width, 74.5 mm height, and 50.4 mm depth enable flexible mounting on TS 35 rails, making it suitable for complex electrical systems.
WEIDMULLER 1562210000 Power Distribution Terminal Block Specifications:
- Width: 39.5 mm (1.555 inch)
- Height: 74.5 mm (2.933 inch)
- Depth: 50.4 mm (1.984 inch)
- Material: Wemid, Light Grey
- Flammability Rating: UL 94V-0
- Rated Voltage: 1000 V AC/DC
- Rated Current: 192 A
- Wire Cross Section Max: 50 mm²
- Connection Type: Screw connection
- Installation: Snap-on mounting on TS 35 rail
- Temperature Range: Min -50°C, Max 130°C
- Standards: IEC 60947-7-1, UL 1059
- Certifications: ATEX, IECEx, cCSAus, RoHS
Buy the Buy Weidmueller Power Distribution Block Part Number 1562210000 Online
Purchase the Weidmueller Power Distribution Terminal Block online today to ensure a secure, high-capacity connection solution. This distribution block supports 1000V AC/DC and 192A current, with screw terminals for reliable contact. Its compact design fits TS 35 mounting rails, making it ideal for industrial control panels and electrical installations. With UL V-0 flammability rating and compliance with IECEx, ATEX, and other certifications, this terminal block guarantees safety and durability. Order now for efficient electrical distribution and effortless installation.
Buy Weidmueller WPD 106 1X70/2X25+3X16 GY now and experience unmatched reliability and performance in your electrical distribution systems.
