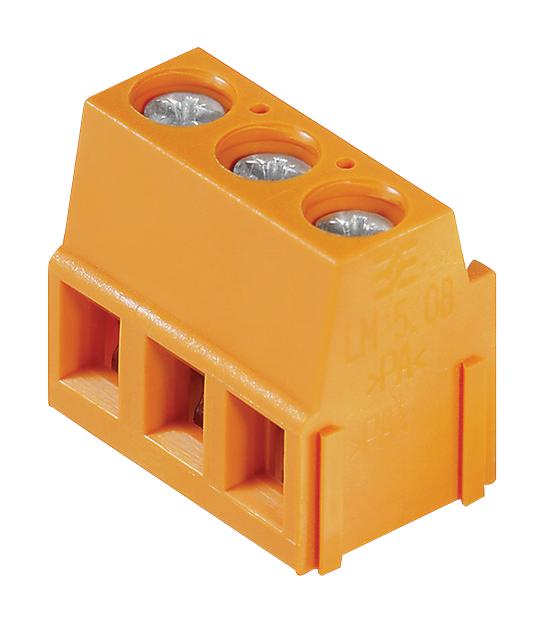

WEIDMULLER 9994190000 LM 5.08/10/90 Connector
The WEIDMULLER LM 5.08/10/90 3.5SN OR BX is a robust PCB terminal block designed for secure and efficient electrical connections in a variety of industrial applications. Its clamping yoke connection ensures reliable contact, while the 90° conductor outlet direction simplifies routing and assembly. Suitable for conductor cross-sections up to 2.5 mm², this terminal block is rated for 630V and 17.5A, making it suitable for demanding environments. It is ideal for applications requiring high-density connections and reliable performance.
WEIDMULLER 9994190000 LM 5.08/10/90 Connector Specifications:
- Base Material: Copper alloy
- Coating: 1-3μm Ni,4-6μm SN
- Insulating Material: Wemid (PA)
- Color: Orange
- Clamping Range Min: 0.2 mm²
- Clamping Range Max: 2.5 mm²
- Conductor Outlet Direction: 90°
- Pitch: 5.08 mm
- Number of Poles: 10
- Solder Pin Length: 3.5 mm
- Rated Voltage IEC: 630 V
- Rated Current IEC: 17.5 A
- Rated Voltage UL: 300 V
- Rated Current UL: 20 A
- UL 94 Flammability Rating: V-0
- Storage Temperature Min: -25 °C
- Storage Temperature Max: 55 °C
- Operating Temperature Min: -50 °C
- Operating Temperature Max: 120 °C
Buy the 9994190000 WEIDMULLER LM 5.08/10/90 Connector | myMectronic
Purchase the WEIDMULLER LM 5.08/10/90 3.5SN OR BX connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 9994190000?
You can click on the BUY or RFQ button to purchase 9994190000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 9994190000?
You can download the 9994190000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 9994190000?
WEIDMULLER
