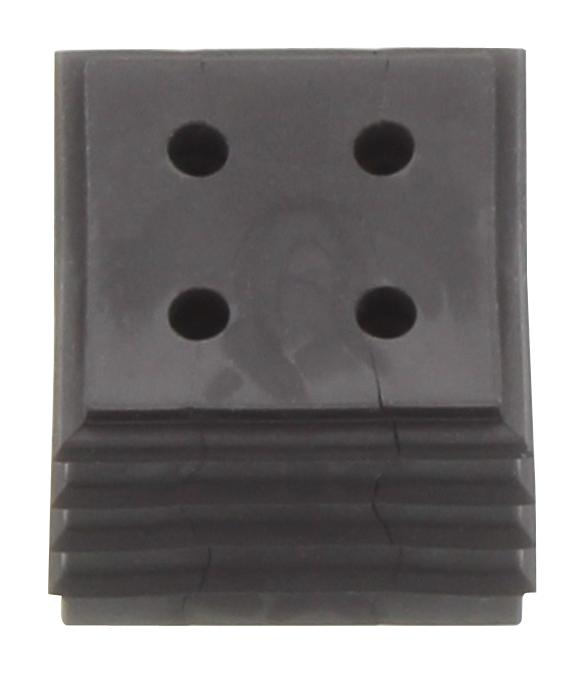

WEIDMULLER 2583590000 Conical Cable Grommet
This conical cable grommet features a wave-cut, slotted design for easy installation and reliable sealing, providing strain relief according to DIN EN 62444. Made from black TPE, it is halogen- and silicone-free, UV stabilized, and suitable for demanding environments with an IP66, NEMA 4X, and 12 rating. Designed for small hole configurations, it accommodates cable diameters of 2mm to 3mm, supports a temperature range of –40°C to +120°C (static), and features a UL94 HB flammability rating, ensuring safe and secure cable entry sealing.
WEIDMULLER 2583590000 Conical Cable Grommet Specifications:
- Material: Halogen-free, silicone-free, UV stabilized TPE
- Color: Black RAL 9005
- Flammability: UL94 HB
- Temperature Range: –40°C to +120°C (static)
- Degree of Protection: IP66, NEMA 4X, 12
- Clamping Range: 2-3 mm
- Design: Conical, wave-cut, slotted for easy installation, press-fit into frame inlays
- Application: Suitable for small sealing elements with 4 holes, effective sealing, and strain relief
- Dimensions & Compatibility: Accommodates cables with diameters of approximately 2mm to 3mm, with easy customization using scissors or a knife for fitting
Buy the Weidmuller Series Conical Sealing Grommet: 2583590000
Secure your cables with the high-quality Weidmuller conical sealing grommet. Designed for easy installation and reliable sealing, it ensures IP66 protection and strain relief. Made from UV stabilized, halogen-free TPE, it operates safely from –40°C to +120°C, compatible with small cable diameters of 2mm to 3mm. Ideal for demanding industrial environments, this gasket prevents dust, water, and mechanical strain, ensuring long-term durability and safety for your control panels and enclosures. Order online today for fast, reliable sealing solutions.
Buy Weidmuller 2583590000 now and experience unmatched sealing reliability, effective strain relief, and durable static operation in demanding environments.
