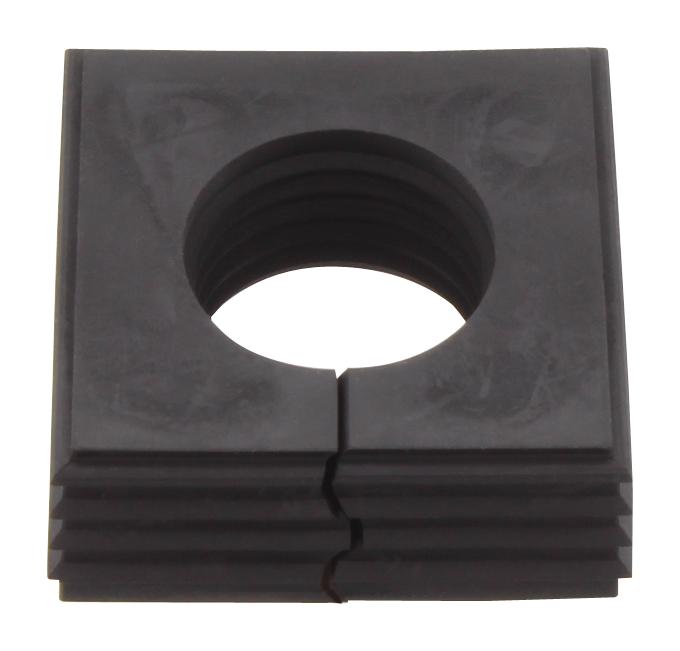

WEIDMULLER 2583730000 Cable Grommet

This conical grommet features a slotted, wave-cut design suitable for preassembled cables. It allows for easy installation by pressing into place from inside the frame inlay, seals gaps effectively, and provides strain relief in accordance with DIN EN 62444 standards. The grommet, combined with the frame inlay, achieves an IP66 protection rating. Made from black halogen-free, silicone-free, UV-stabilized TPE, it is suitable for use within a temperature range of –40°C to +120°C (static). It has a large one-hole clamp with a diameter of 23mm to 24mm and a flammability rating of UL94 HB.

Authorized Distributors
Source:Newark
Part No:2583730000
Stock:10
Inv Date:06-11-2026
Price: Unit price: $1.21
Buy/RFQ:
Source:DigiKey
Part No:2583730000
Stock:54
Inv Date:06-11-2026
Price: Unit price: $6.45
Buy/RFQ:
Part No:2583730000
Stock:0
Inv Date:06-12-2026
Price: Unit price: $6.68
Buy/RFQ:

WEIDMULLER 2583730000 Cable Grommet Specifications:

  • Material: TPE, halogen-free, silicone-free, UV stabilized
  • Protection rating: IP66
  • Temperature Range: –40°C to +120°C (static)
  • Design: Conical, wave-cut, non-split
  • Clamp Range: 23mm to 24mm
  • Flammability: UL94 HB
  • Color: Black RAL 9005

Buy the Weidmuller Series Cabtite Grommet: 2583730000

Purchase the Weidmuller cable grommet 2583730000 online today for high-quality sealing and strain relief on cables with diameters of 23-24mm. Made from durable, UV-stabilized TPE, it ensures IP66 protection and operates reliably within a wide temperature range from –40°C to +120°C. Its wave-cut design simplifies installation, sealing gaps, and providing strain relief according to DIN EN 62444 standards. Ideal for preassembled cables, this grommet offers long-lasting performance, safety, and ease of use for control cabinets, enclosures, and machine applications.

Get Weidmuller 2583730000 today—built for reliable sealing and effective strain relief for diverse cable management needs.

Frequently Asked Questions

Where can I buy WEIDMULLER 2583730000?

You can click on the BUY or RFQ button to purchase 2583730000 from an authorized WEIDMULLER distributor.

How do I troubleshoot issues or seek technical support for part 2583730000?

You can download the 2583730000 datasheet or visit the WEIDMULLER website for support.

Who is the manufacturer of 2583730000?

WEIDMULLER
