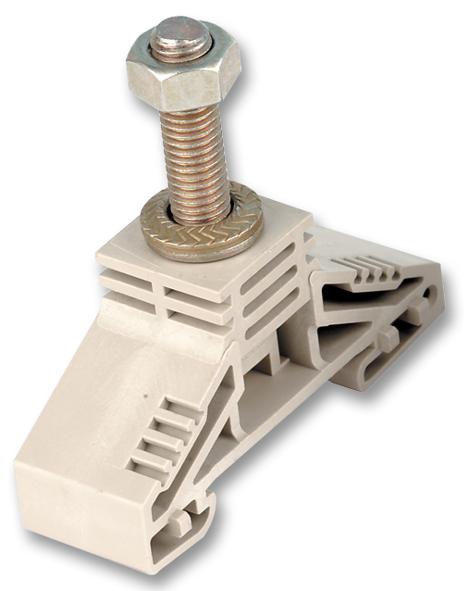

WEIDMULLER WF8 industrial screw terminal
The bolt-type screw terminals are designed for robust, high-current connections in industrial environments. These single-stud, feed-through terminals support a rated cross-section of 50 mm² and are mounted on TS 35 rails. Made from dark beige Wemid material, they boast a UL 94 flammability rating V0. With a width of 22.8mm, height of 67mm, and depth of 63.5mm, they support operating temperatures from -50°C to 120°C. Suitable for applications requiring reliable, secure connections with a maximum current of 150A and voltage of 1000V, they feature threaded stud connections with a tightening torque of 6–12 Nm and comply with CSA and UL standards.
WEIDMULLER WF8 industrial screw terminal Specifications:
- Width: 22.8mm (0.898 inch)
- Height: 67mm (2.638 inch)
- Depth: 63.5mm (2.5 inch)
- Net weight: 46.1749g
- Materials: Wemid, Dark Beige, UL 94 V0 rated
- Operating temperature: -50°C to 120°C
- Rated cross-section: 50 mm²
- Rated voltage: 1000 V
- Rated current: 150A
- Clamping range: 2.5…50 mm²
- Tightening torque: 6–12 Nm
- Mounting: Snap-on, TS 35 rail
- Number of levels: 1
- Connections: 1 clamping point per level
- Certification: UL listed, CSA certified
- Impulse voltage with epoxy partition plate: 12 kV
- Flammability rating: UL 94 V0
Buy the Weidmueller WF8 – Reliable Industrial Screw Terminals for Harsh Environments
Order the Weidmueller WF8 bolt-type screw terminal online today for high-performance, reliable connections in industrial electrical systems. These robust, single-stud feed-through terminals support a rated cross-section of 50 mm² and operate safely up to 120°C. Designed for use on TS 35 mounting rails, they feature threaded stud connections with a tightening torque of 6–12 Nm. Certified by UL and CSA for safety and durability, these terminals are ideal for harsh environments needing secure, high-current, and high-voltage connections with maximum efficiency.
Get Weidmueller WF8 today—built for secure, high-current industrial connections in demanding environments.
