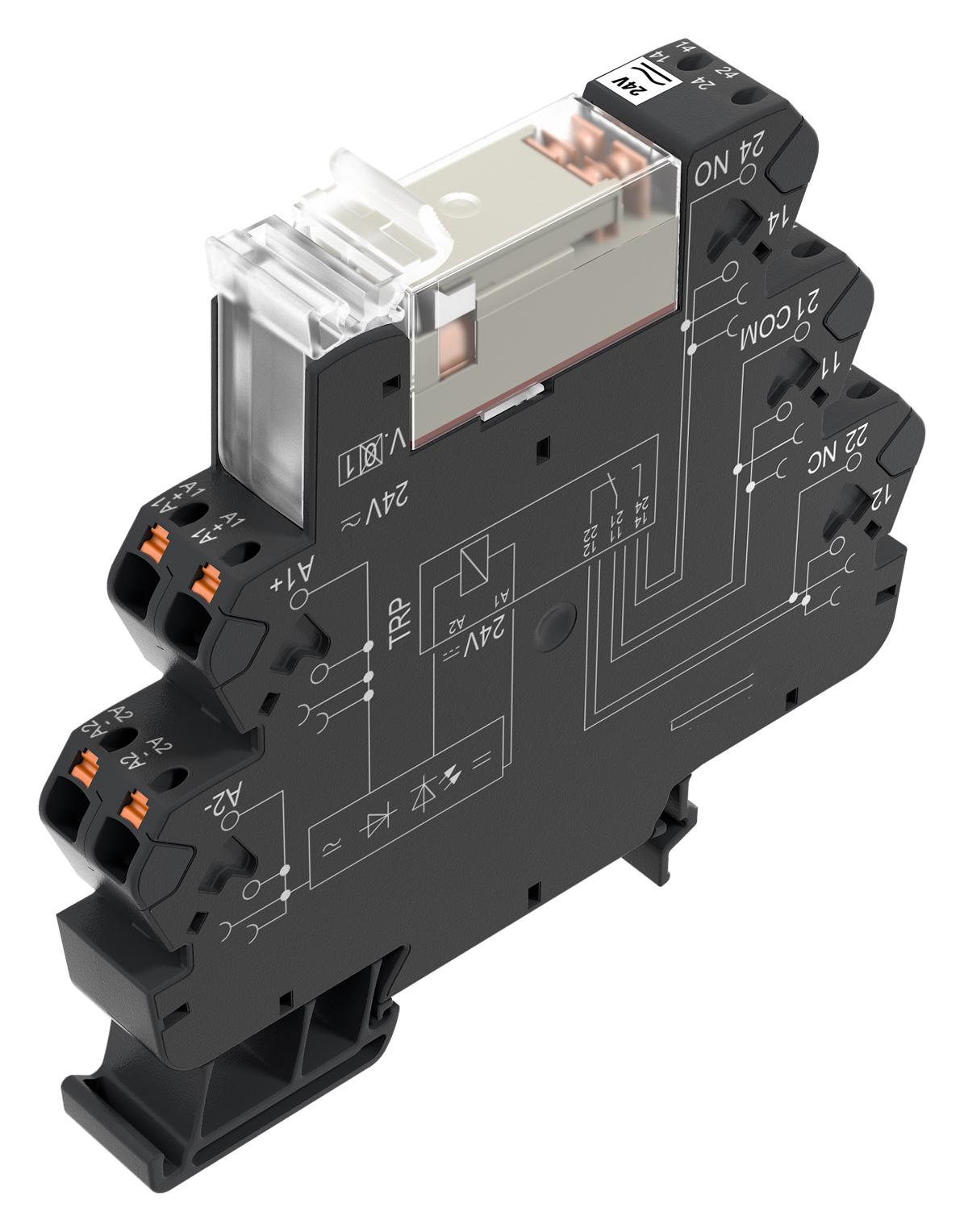

WEIDMULLER 2618100000 TRP 24VDC 1CO 16A Relay Module

WEIDMULLER 2618100000 TRP 24VDC 1CO 16A Relay Module Specifications:

• Type: TRP 24VDC 1CO 16A
• Order No.: 2618100000
• Version: TERMSERIES, Relay module, Number of contacts: 1 CO contact AgNi
• Rated control voltage: 24 V DC ± 20 %
• Continuous current: 16 A
• Push In: with actuator
• GTIN(EAN): 4050118670738
• Quantity: 10 pc(s).
• Width: 12.8 mm
• Height: 89.4 mm
• Depth: 87.8 mm
• Net weight: 56.3 g
• Width(inches): 0.504 inch
• Height(inches): 3.52 inch
• Depth(inches): 3.457 inch
• Humidity: 5-95% relative humidity, Tu= 40°C, without condensation
• Operating temperature, min: -40 °C
• Storage temperature, min: -40 °C
• Storage temperature: -40 °C...85 °C
• Operating temperature, max: 60 °C
• Storage temperature, max: 85 °C
• Rated data UL Ambient temperature(operational),max: 60 °C
• Connection cross-section AWG, max: AWG 14
• Pollution severity level: 2
• Connection cross-section AWG, min: AWG 26
• Type of conductor: rigid copper conductor, flexible copper conductor
• Altitude: ≤ 2000 m, above sea level
• Power rating: 530 mW
• Pull-in/drop-out current, typ: 15.5 mA/2.8 mA DC
• Protective circuit: Free-wheeling diode, Reverse polarity protection
• Coil voltage of the replacement relay: 24 V DC
• Rated current DC: 21 mA
• Pull-in/drop-out voltage, typ: 18 V/4 V DC
• Status indicator: Green LED
• Max. switching voltage, AC: 250 V
• Max. switching voltage, DC: 250 V
• Inrush current: 30 A/4 s
• DC switching capacity (resistive), max: 384 W @ 24 V
• Switch-off delay: ≤ 16 ms
• Max. switching frequency at rated load: 0.1 Hz
• AC switching capacity (resistive), max: 4000 VA
• Switch-on delay: ≤ 7 ms
• Min. switching power: 10 mA @ 10 V, 100 mA @ 5 V
• Contact type: 1 CO contact (AgNi)
• Mechanical service life: 30 x 106 switching cycles
• Rail: TS 35
• Mechanical switchposition indicator: No
• UL 94 flammability rating: V-0
• Test button: No
• Colour: black
• Rated voltage: 300 V
• Pollution severity: 2
• Dielectric strength, Input/Output: 1.2 kVeff/ 5 s
• Dielectric strength of open contact: 1 kVeff/ 1 min
• Impulse withstand voltage: 6 kV (1.2/50 µs)
• Surge voltage category: III
• Protection degree: IP20
• Creepage and clearance distance input – output: ≥ 5.5 mm
• Dielectric strength to mounting rail: 4 kVeff/ 1 Min.
• Standards: EN 50178, EN 55011, EN 61000-6-1,2,4
• Certificate no. (cULus): E141197
• Certificate No. (DNVGL): TAA00001E5
• Clamping range, rated connection: 1.5 mm²
• Clamping range, max: 2.5 mm²
• Wire connection cross section AWG, max: AWG 14
• Wire cross-section, solid, max: 2.5 mm²
• Wire connection cross section, finely stranded, max: 2.5 mm²
• Wire connection cross section AWG, min: AWG 26
• Wire connection cross-section, finely stranded, min: 0.14 mm²
• Wire connection cross-section, finely stranded, min (AWG): AWG 26
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max: 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max: 1.5 mm²
• Twin wire-end ferrules, max: 1 mm²
• Stripping length, rated connection: 8 mm
• Clamping range, min: 0.14 mm²
• Blade size: 0.4 x 2.0 mm
• ETIM 6.0: EC001437
• eClass 9.0: 27-37-16-01
• eClass 10.0: 27-37-16-01
• ETIM 7.0: EC001437
• eClass 9.1: 27-37-16-01
