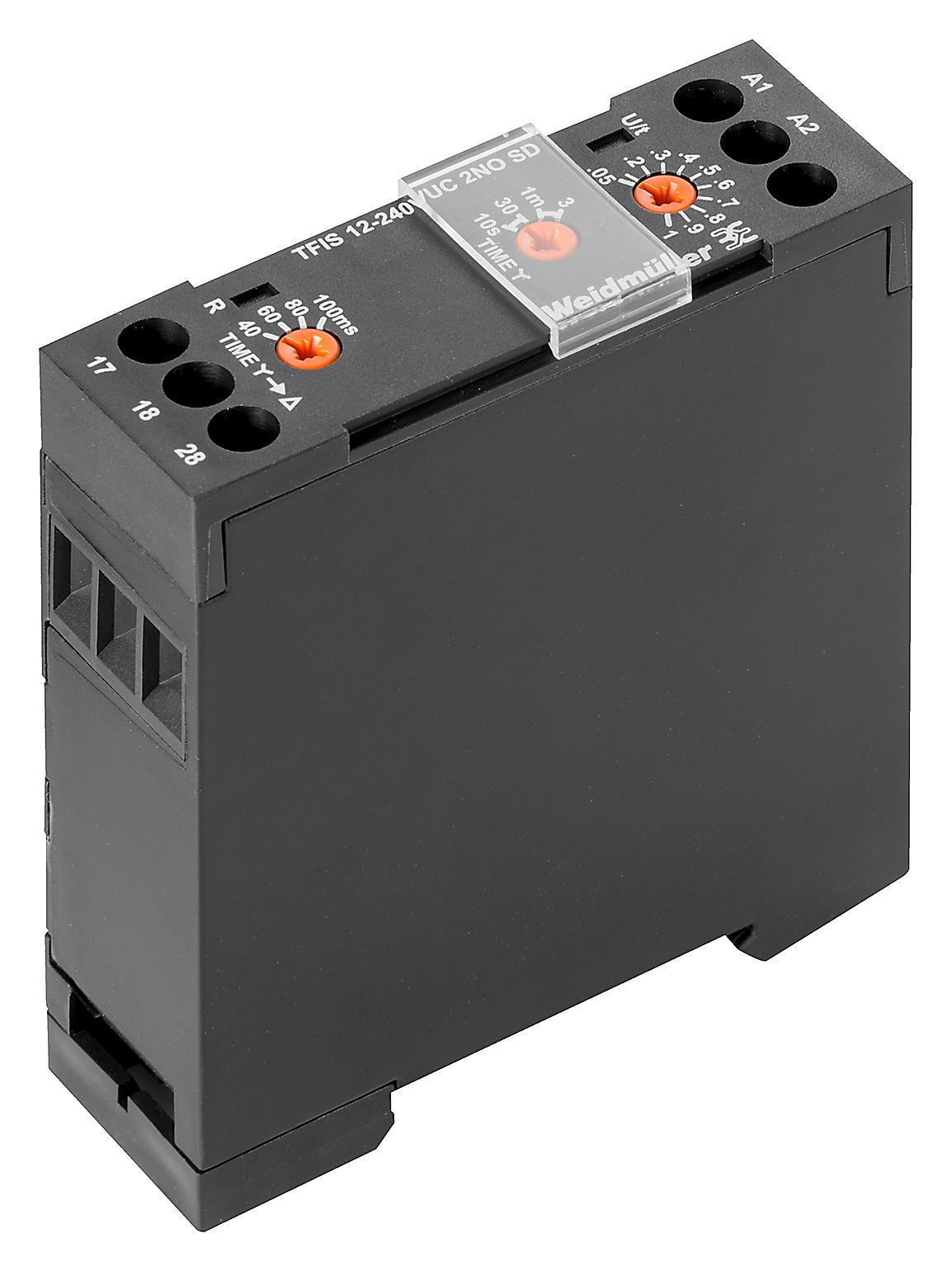

WEIDMULLER 2697270000 TFIS 12-240VUC 2NO SD Timer

WEIDMULLER 2697270000 TFIS 12-240VUC 2NO SD Timer Specifications:

• Type: TFIS 12-240VUC 2NO SD
• Order No.: 2697270000
• Version: TFI-SERIES, Star-Delta Timer
• Number of contacts: 2
• Contact type: NO contact (AgNi)
• Rated control voltage: 12...240 V UC - 10 % / +10 %
• Continuous current: 3 A
• Connection type: Screw connection
• GTIN (EAN): 4050118705270
• Quantity: 1 pc(s).
• Width: 225 mm
• Height: 67 mm
• Depth: 75 mm
• Net weight: 83 g
• Width (inches): 8.858 inch
• Height (inches): 2.638 inch
• Depth (inches): 2.953 inch
• Humidity: 5…95 % rel. humidity, no condensation
• Operating temperature (min): -25 °C
• Storage temperature (min): -40 °C
• Storage temperature (max): 70 °C
• Operating temperature (max): 60 °C
• Status indicator: LED green (U/t) flashes: star-relay closed, time runs; LED green (U/t) lights permanently: delta-relay closed, time runs; LED yellow(R): star-relay closed
• Setting tolerance: 5 %
• Min. pulse duration: 100 ms
• Timing function: Star-delta start-up
• Power rating: 500 mVA, 180 mW
• Repeat accuracy: < 0.5 % or ±5 ms
• Basic accuracy: < 1 %(of scale-end value)
• Time ranges: 0.5 s - 10 s, 1.5 s - 30 s, 3 s - 60 s, 9 s - 180 s
• Max. reset time after voltage interruption: 200 ms
• Rated switching voltage: 250 V AC
• Max. switching voltage (DC): 30 V
• AC switching capacity (resistive), max.: 750 VA
• Min. switching power: 10 mA @ 12 V, 100 mA @ 5 V
• Max. switching voltage (AC): 250 V
• DC switching capacity (resistive), max.: 90 W
• Mechanical service life: 20 x 10^6 switching cycles
• Electrical service life (DC coil): 100x10^3 switching cycles (3 A at 250 VAC)
• Rail: TS 35
• Mechanical switch position indicator: No
• UL 94 flammability rating: V-0
• Test button: No
• Colour: black
• Resistance to vibration EN 61812-1: 10 Hz...60 Hz: 0.15 mm, 60 Hz...150 Hz: 2 g
• Rated voltage: 300 V
• Pollution severity: 2
• Dielectric strength, Input/Output: 1.6 kV
• Impulse withstand voltage: 4 kV
• Surge voltage category: III
• Protection degree: IP20
• Creepage and clearance distance input – output: ≥ 3 mm
• Certificate no. (cULus): E360862
• Wire connection method: Screw connection
• Tightening torque (max): 1 Nm
• Clamping range (min): 0.5 mm²
• Wire cross-section AWG (min): AWG 20
• Wire cross-section (solid, min): 0.5 mm²
• Wire cross-section (finely stranded, min): 0.5 mm²
• Wire connection cross-section (ferrules, min): 0.5 mm²
• Conductor cross-section (AEH, min): 0.5 mm²
• Wire cross-section (two clampable wires, min): 0.5 mm²
• Stripping length: 8 mm
• Clamping range (rated connection): 2.5 mm²
• Clamping range (max): 4 mm²
• Wire cross-section AWG (max): AWG 12
• Wire cross-section (solid, max): 4 mm²
• Wire cross-section (finely stranded, max): 4 mm²
• Wire connection cross-section (ferrules, max): 2.5 mm²
• Conductor cross-section (AEH, max): 2.5 mm²
• Wire cross-section (two clampable wires, max): 2.5 mm²
• ETIM 6.0: EC001439
• eClass 9.0: 27-37-16-05
• eClass 10.0: 27-37-16-05
• ETIM 7.0: EC001439
• eClass 9.1: 27-37-16-05
