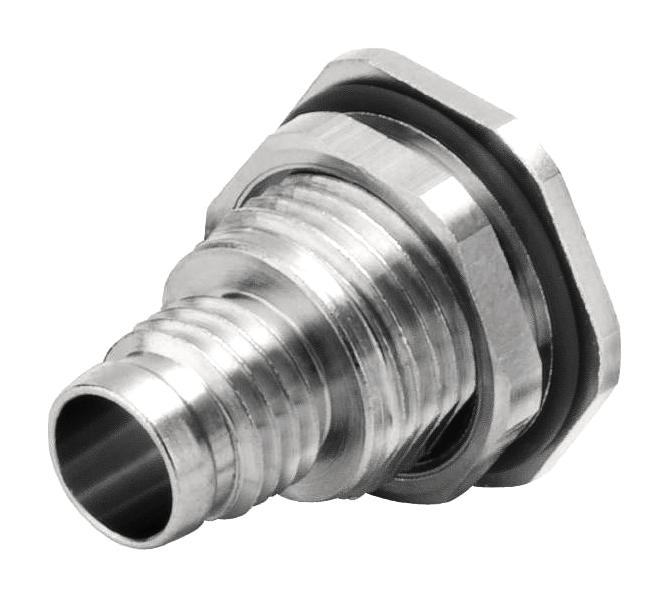

WEIDMULLER 2726030000 SPE M8 Backpanel Connector
The Weidmuller IE-BHD-SPE-M8-OT-BP connector is a key component for Single Pair Ethernet (SPE) networks, offering a compact and robust solution for industrial automation and IIoT applications. It features an IP67 protection rating, ensuring reliable operation in harsh environments. The connector's backpanel mounting design simplifies integration into various systems, while its M8 connection provides a standardized interface. SPE technology enables uniform Ethernet-based communication from the sensor to the cloud, making it a future-proof solution for Industry 4.0.
WEIDMULLER 2726030000 SPE M8 Backpanel Connector Specifications:
- Net weight: 3 g
- Operating temperature: 40 °C...85 °C
- Configuration: Backpanel mounting
- Colour: silver
- Connection thread: M10 x 0.75
- Protection degree: IP67
- UL 94 flammability rating: V-0
- Housing main material: Brass, nickel-plated
- Type of mounting: Screw mounting
- Insulation strength: ≥ 500 MΩ
- Connector standard: IEC 61076-2-104
- ETIM 6.0: EC001031
- ECLASS 9.0: 27-18-27-02
- ECLASS 10.0: 27-18-27-02
- ETIM 7.0: EC001031
- ECLASS 9.1: 27-18-27-02
- ECLASS 11.0: 27-18-27-02
Buy the 2726030000 WEIDMULLER SPE M8 Backpanel Connector | myMectronic
Purchase the Weidmuller IE-BHD-SPE-M8-OT-BP connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WEIDMULLER 2726030000?
You can click on the BUY or RFQ button to purchase 2726030000 from an authorized WEIDMULLER distributor.
How do I troubleshoot issues or seek technical support for part 2726030000?
You can download the 2726030000 datasheet or visit the WEIDMULLER website for support.
Who is the manufacturer of 2726030000?
WEIDMULLER
