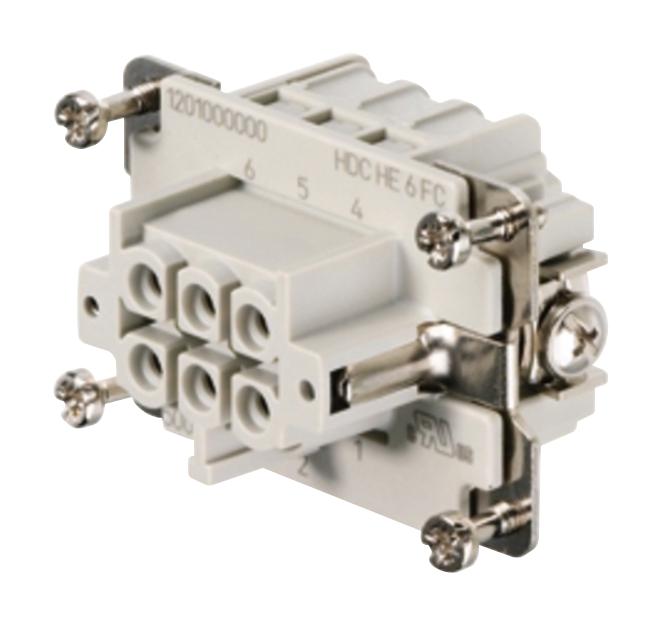

Weidmuller HDCHE6FC Crimp Connector Insert
The HDC HE 6 FC is a 6-pole crimp connector insert designed for reliable wire connections in electrical applications. It features a rated current of 24 A and a rated voltage of 500 V, suitable for UL/CSA standards up to 600 V AC/DC. Made from copper alloy with a silver passivated and gold finish, it offers durable performance with up to 2500 plugging cycles. The insert supports wire cross-sections from 0.5 mm² to 4 mm², ensuring secure and efficient connections in various industrial and automation setups.
Weidmuller HDCHE6FC Crimp Connector Insert Specifications:
- Number of Poles: 6
- Rated Current: 24 A
- Rated Voltage: 500 V, UL/CSA: 600 V AC/DC
- Dimensions: Length 51 mm, Width 34 mm, Height 33.5 mm
- Material: Copper alloy, silver passivated, gold finish
- Insulation Material: PC (glass-fibre reinforced)
- Conductor Cross-Section: 0.5 mm² to 4 mm² (AWG 20 to 12)
- Temperature Range: -40°C to 125°C
- Plugging Cycles: 2500
- Connection Type: Crimp
- Pollution Severity: 3
- Insulation Resistance: 10^9 Ω
- Volume Resistance: <2 mΩ
- Tightening Torque (PE connection): 1.2–1.5 Nm
- Dimensions and weight: Length 51 mm, Net weight 349 g
Buy the Weidmueller Series HDC HEC: HDC HE 6 FC
Purchase the Weidmueller HDC HE 6 FC connector online today for dependable electrical connections in industrial and automation applications. With a robust copper alloy construction, a rated current of 24 A, and a voltage rating of 500 V, this 6-pole insert ensures secure and efficient wiring. Its gold finish provides corrosion resistance, while supporting wire cross-sections from 0.5 mm² to 4 mm². Easy to install, durable, and rated for 2500 plugging cycles, it’s an ideal choice for high-performance wiring systems.
Buy Weidmueller HDC HE 6 FC now and experience unmatched reliability and performance for your electrical connections with its durable, high-quality design.
