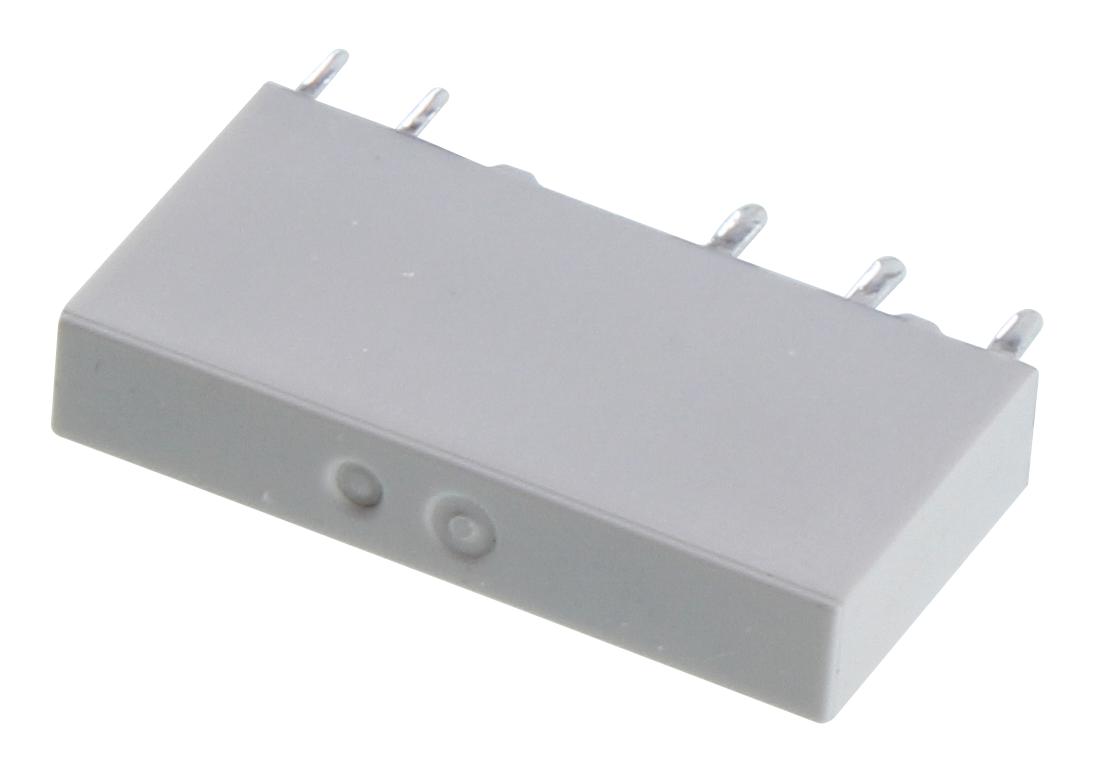

WEIDMULLER 4061590000 Industrial Control Relay
The relay features a single CO contact with AgNi 5um Au plating, rated control voltage of 24 V DC, continuous current of 6 A, and plug-in connection. It measures 5mm in width, 28mm in height, and 15mm in depth, weighing 4.59 grams. Designed for reliable switching with a max load capacity of 250 VAC/DC, it offers an inrush current of up to 1500 VA and a switching capacity of 144W at 24 V DC. Suitable for industrial automation and control systems, it meets UL 508 and IEC 61810-1 standards, with an IP67 protection degree, and a mechanical life span of 50 million cycles.
WEIDMULLER 4061590000 Industrial Control Relay Specifications:
- Width: 5 mm (0.197 inch)
- Height: 28 mm (1.102 inch)
- Depth: 15 mm (0.591 inch)
- Weight: 4.59 grams
- Control voltage: 24 V DC
- Rated current: 6 A
- Max switching voltage: 250 VAC / 250 VDC
- Inrush current: 1500 VA (AC), 144 W @24 V DC
- Switching delays: <8 ms (on), <4 ms (off)
- Contact material: AgNi 5um Au
- Mechanical life: 50 million cycles
- Protection degree: IP67
- Standards: IEC 61810-1, UL 508
- Dielectric strength open contact: 1 kV RMS / 1 min
- Impulse withstand voltage: 6 kV (1.2/50 μs)
Buy the Weidmueller Series Termsystem Relay: 4061590000
Purchase the Weidmueller relay 4061590000 online today to ensure high-quality performance in your automation system. This compact relay offers 1 CO contact with a control voltage of 24 V DC, supporting up to 6 A current and max load capacity of 250 VAC/DC. It features reliable switching with low delays, an IP67 protection degree for harsh environments, and a mechanical life of 50 million cycles. Perfect for industrial control, automation, and manufacturing needs, this relay guarantees durability and efficiency, available for quick online purchase.
Buy Weidmueller relay 4061590000 now and experience unmatched reliability and performance in industrial automation and control applications.
