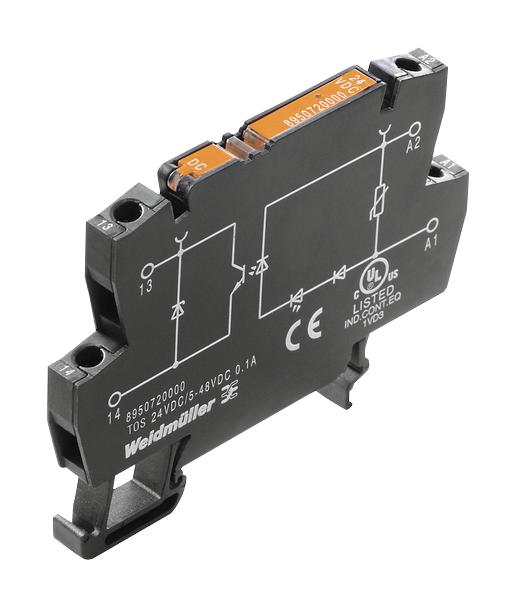

WEIDMULLER 8950720000 Solid-State Relay
The Weidmiiller TERMOPTO solid-state relay is a compact, enclosed switching device designed for 5 to 48 VDC control voltage and capable of handling up to 0.1A load current. Featuring a screw connection and various input protection options, including free-wheel diodes and varistors, it provides reliable switching for DC loads. Its small dimensions (6.1 mm wide, 74.4 mm height, 55 mm depth) and robust design make it suitable for automation and control applications, with high dielectric strength and UL 94 V-0 flammability rating for safety and durability.
WEIDMULLER 8950720000 Solid-State Relay Specifications:
- Width: 6.1mm (0.24 inch)
- Height: 74.4mm (2.929 inch)
- Depth: 55mm (2.165 inch)
- Control Voltage: 24 VDC ±20%, 5VDC to 48VDC
- Rated switching voltage: 5...48 V DC
- Rated control current: 7 mA DC
- Continuous current: 100 mA
- Voltage drop at max load: <1V
- Max switching frequency: 3,000 Hz
- Operating temperature: -20°C to 60°C
- Storage temperature: -20°C to 80°C
- Insulation dielectric strength: 1.2 kV for 1 min
- Flammability rating: UL 94 V-0
- Protection class: IP20
- Connection: Screw terminal with clamping range 0.5-2.5 mm²
- Surge voltage category: 4 kV
- Contact type: 1 NO transistor switch
- Switching delay: <13 µs (on), <42 µs (off)
Buy the Weidmiiller Series TERMOPTO Solid-State Relay: 8950720000
Enhance your automation system with the reliable and compact Weidmiiller Series TERMOPTO solid-state relay. Capable of switching up to 0.1A with control voltages from 5VDC to 48VDC, it offers robust input protection, including free-wheel diodes and varistors. Its small size (6.1mm wide) allows easy integration into control panels. Designed to operate within -20°C to 60°C, it features high dielectric strength and UL certification, making it an ideal choice for industrial automation tasks requiring dependable and safe switching solutions.
Order your Weidmiiller Series TERMOPTO relay 8950720000 today and ensure reliable, compact switching for your automation projects.
