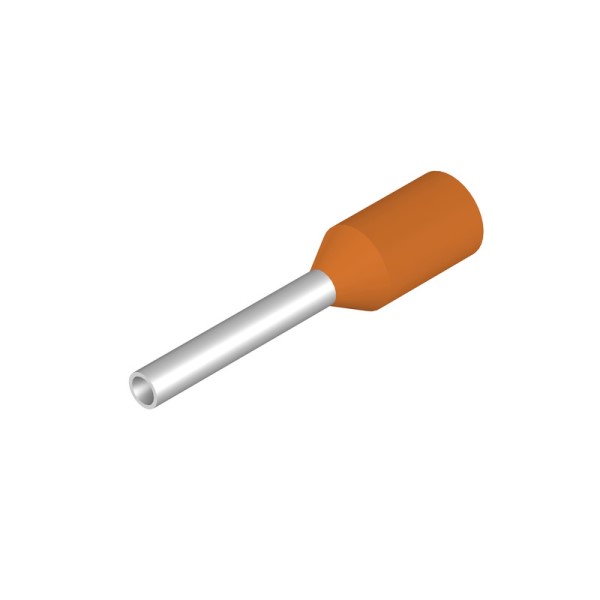

WEIDMULLER 0690700000 Insulated Wire-end Ferrule
The Weidmuller H0,5/14 OR insulated wire-end ferrule is a critical component in electrical assemblies, providing a secure and reliable termination point for wires. Its insulated design enhances safety and prevents short circuits. The ferrule's orange color code facilitates easy identification and organization within complex wiring systems. Suitable for a range of industrial applications where robust and dependable wire connections are essential, this ferrule contributes to the overall reliability and performance of the electrical system.
WEIDMULLER 0690700000 Insulated Wire-end Ferrule Specifications:
- Net weight: 0.07 g
- Version: insulated
- Collar diameter (D2): 2.6 mm
- Conductor cross-section: 0.5 mm²
- Contact surface length (L2): 8 mm
- Metal sleeve thickness (S1): 0.15 mm
- Stripping length: 10 mm
- Contact surface diameter (D1): 1 mm
- L1: 14 mm
- Plastic collar thickness (S2): 0.2 mm
- Wire connection cross section AWG, max: AWG 20
- ETIM 6.0: EC000005
- eClass 9.0: 27-40-02-01
- eClass 10.0: 27-40-02-01
- ETIM 7.0: EC000005
- eClass 9.1: 27-40-02-01
- UNSPSC: 31-16-31-02
